SolaHD HS5F3AS 3 kVa 240 x 480 VAC Primary 120/240 VAC Secondary

Product Description

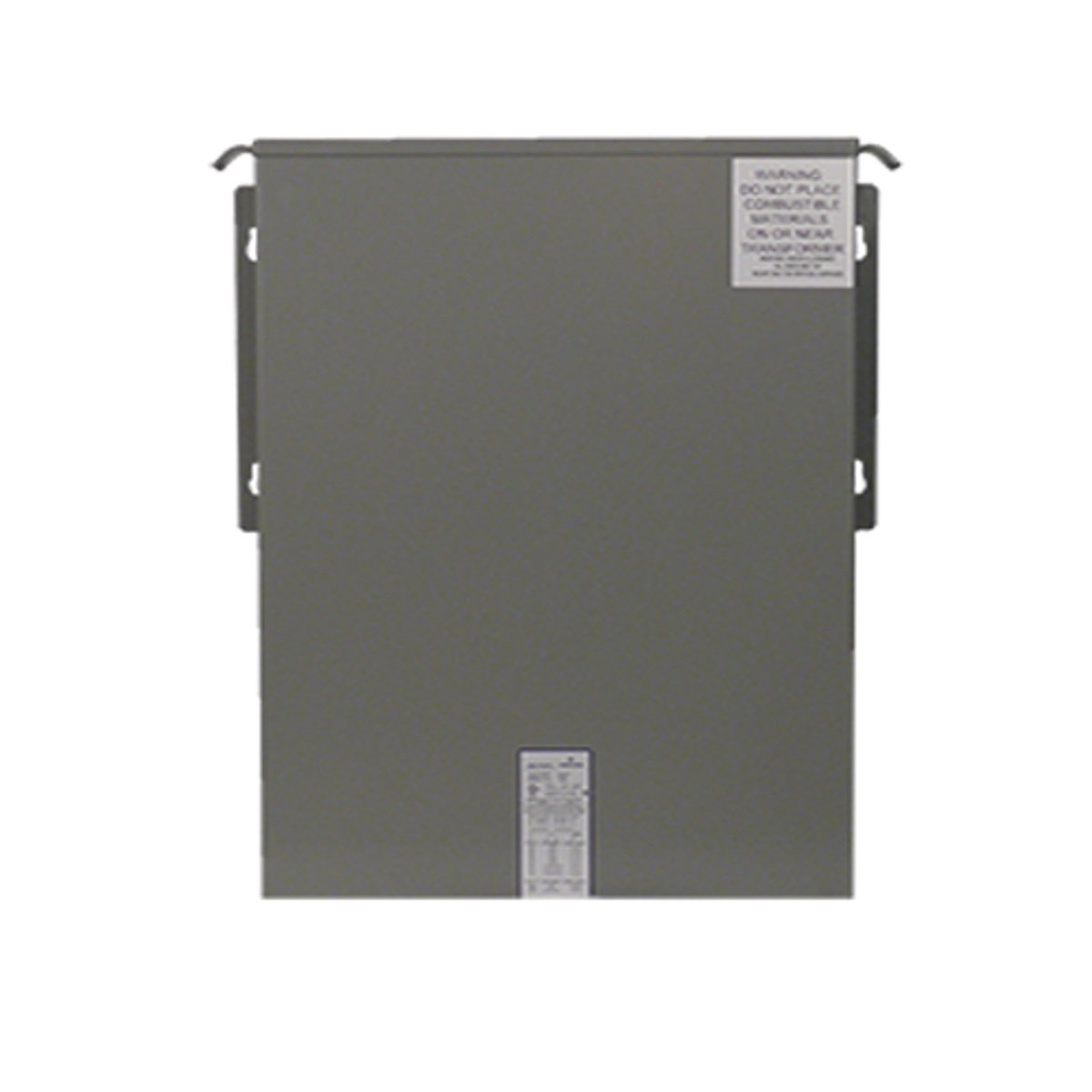

The SolaHD HS5F3AS is a 3 kVA encapsulated transformer designed for harsh environments. This non-ventilated transformer operates at a primary voltage of two hundred forty by four hundred eighty VAC and a secondary voltage of one hundred twenty by two hundred forty VAC. It is UL listed and features a NEMA 3R enclosure suitable for both indoor and outdoor applications.

• Rated for 3 kVA with a primary voltage of 240 x 480 VAC @ 60 Hz
• Secondary voltage rating of 120/240 AC @ 60 Hz
• Temperature rise rated at 115 degrees Celsius under full load

Product Highlights

This transformer provides reliable power distribution in industrial settings, ensuring protection against dust and moisture.

Product Information

Standard Information

• Brand: SolaHD
• Manufacturer: Emerson Electric

Technical Specifications

• MPN: HS5F3AS
• Enclosure: NEMA 3R
• KVA Rating: 3
• Input Voltage: 240 x 480 VAC
• Output Voltage: 120/240 VAC
• Frequency Rating: 60 Hz
• Number of Phases: 1
• Temperature Rating: 115 degrees Celsius
• Dimensions: 9 inches (Length) x 14 inches (Width) x 12 inches (Height)
