SolaHD HS20F750B Buck Boost Transformer 0.750 KVA 120x240-16/32

Product Description

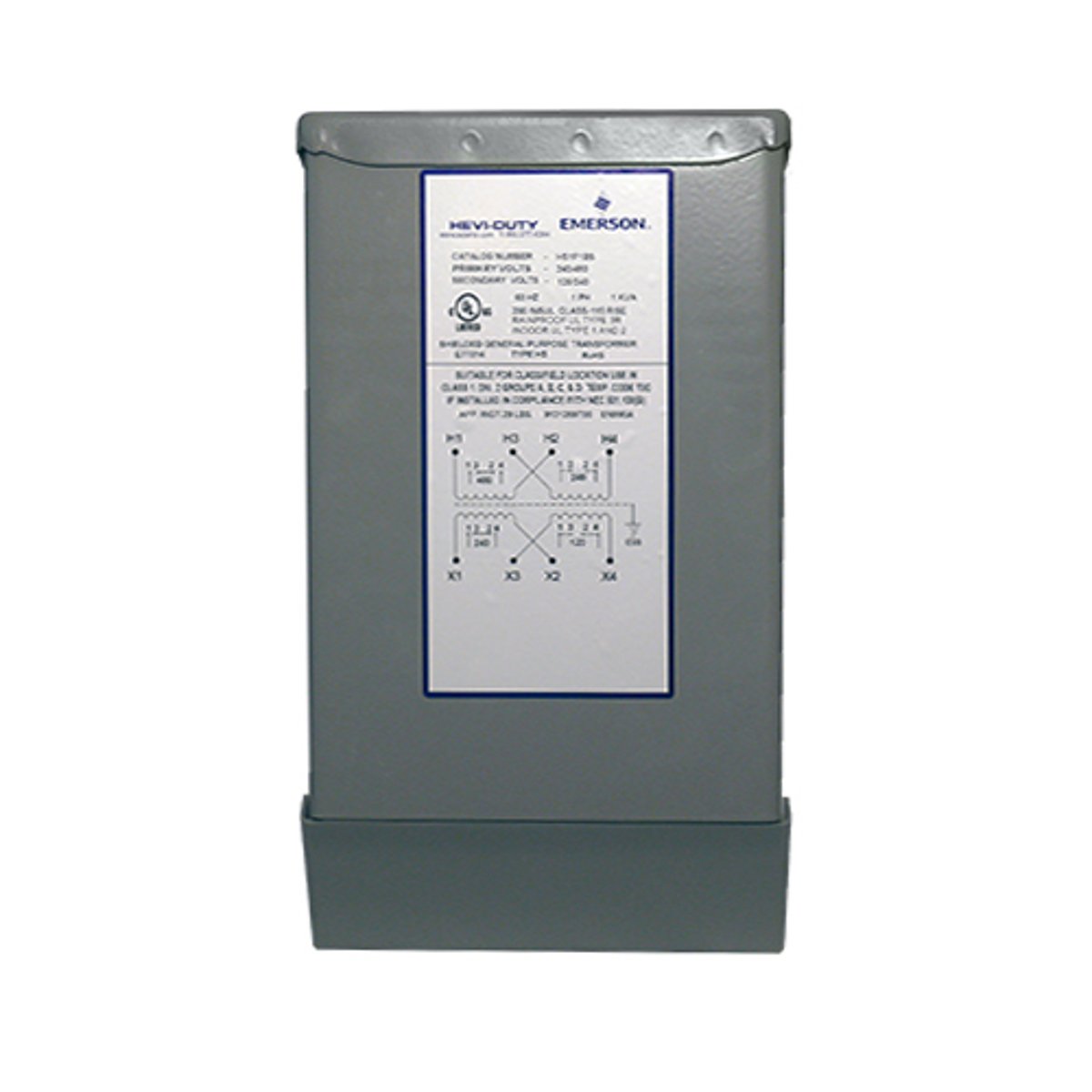

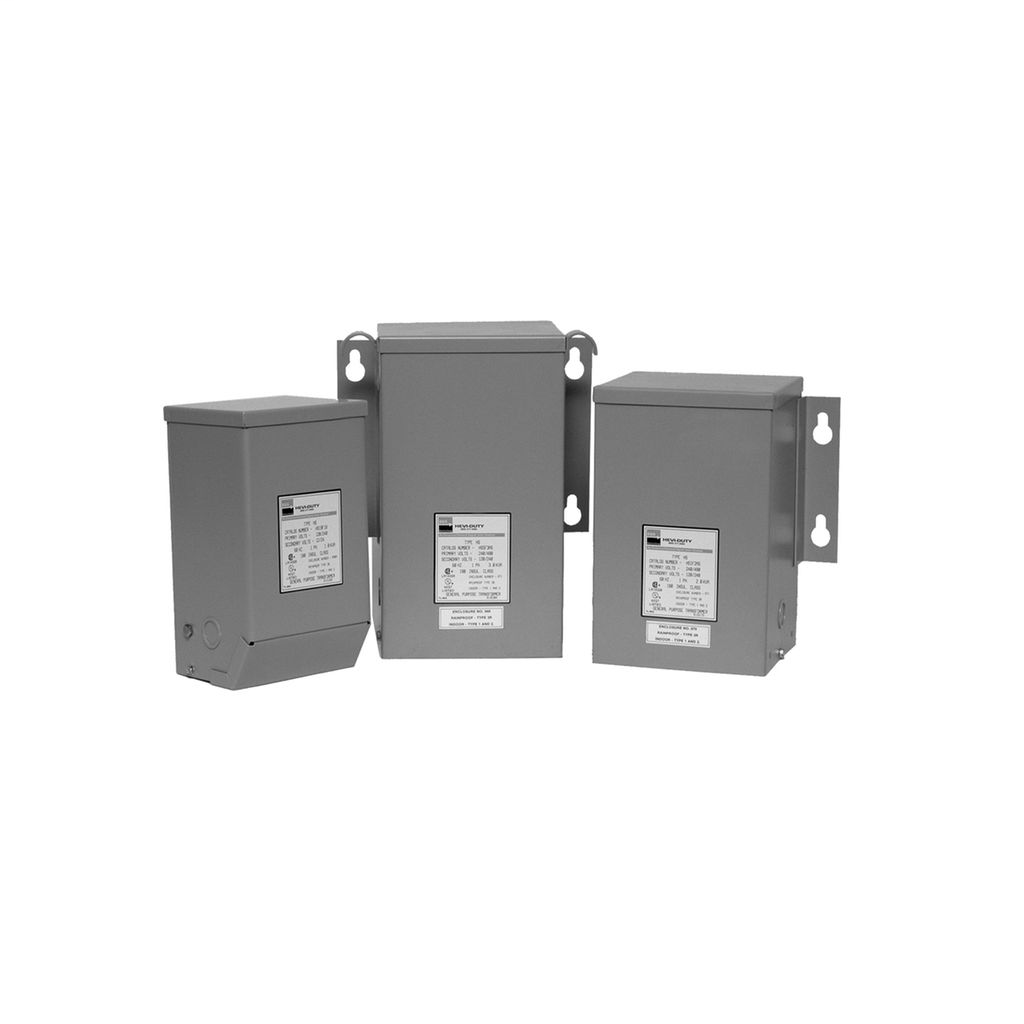

The SolaHD HS20F750B is a buck-boost transformer designed to provide efficient power supply for lighting circuits and control panels. This transformer offers a maximum power rating of 0.750 KVA with a primary voltage of 120 x 240 volts and a secondary voltage of 16/32 volts.

• Encapsulated design for enhanced durability.
• Compatible with a variety of voltage combinations.
• Ideal for low voltage applications.

Product Highlights

This buck-boost transformer is engineered to raise or lower voltage levels for specific equipment needs. It is versatile and suitable for use in various industrial and commercial applications.

Product Information

Standard Information

• Manufacturer: SolaHD (Emerson)
• Country of Origin: United States

Technical Specifications

• Power Rating: 0.75 KVA
• Primary Voltage: 120 x 240 V
• Secondary Voltage: 16/32 V
• Frequency Rating: 60 Hz
• Number of Phases: 1
• Dimensions: 5 in (L) x 6 in (W) x 10 in (H)
• Max Input Current: 62.5 Amps @ 12V; 31.2 Amps @ 24V
• Wattage: 0.75 KVA
