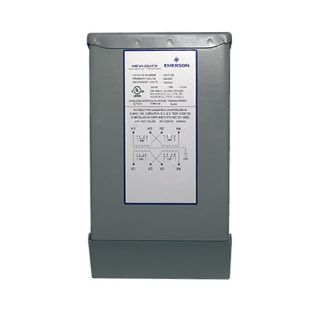

SolaHD HS19F750B SHD 0.75 kVA 120 x 240 VAC Primary 12/24 VAC Secondary

Product Description

The SolaHD HS19F750B is a Buck Boost Transformer designed to meet various voltage requirements in industrial applications. This transformer is rated at 0.75 kVA with a primary voltage of 120 x 240 VAC and secondary voltage of 12/24 VAC. It is suitable for use in control panels and landscape lighting.

• Copper lead wire terminations
• UL Listed Nema Type 3R
• Encapsulated design for hazardous locations

Product Highlights

This transformer is compact and lightweight, ideal for applications in harsh environments.

Product Information

Standard Information

• Manufacturer: SolaHD (Emerson)
• Type: Buck-Boost Transformer

Technical Specifications

• Wattage: 0.75 kVA
• Primary Voltage: 120 x 240 V
• Secondary Voltage: 12/24 V
• Frequency Rating: 60 Hz
• Number of Phases: 1
• Maximum Input Current: Primary Amps 3.13/1.56; Secondary Amps 6.25/3.13 Amps
• Enclosure: NEMA 3R
• Dimensions: 5 inches (Length) x 6 inches (Width) x 10 inches (Height)
