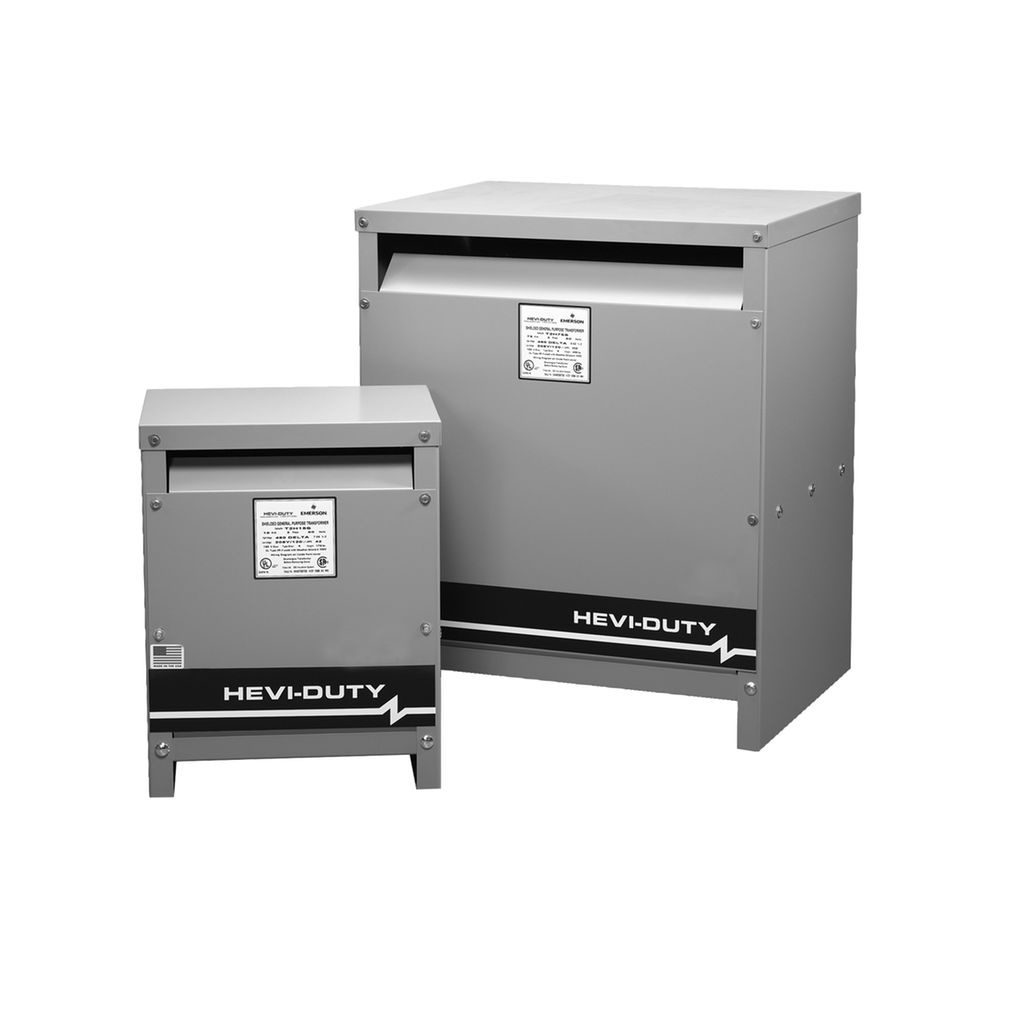

SolaHD ES5H50S 50 kVa 240 x 480 VAC Primary 120/240 VAC Secondary 1-Phase Dry Type Distribution Transformer

Product Description

The SolaHD ES5H50S is a 50 kVa dry type distribution transformer that operates on 240 x 480 VAC primary and provides 120/240 VAC secondary output. This transformer is designed for general purposes and classified as an isolation transformer, meeting various industrial and commercial requirements.

• UL Listed for safety compliance
• Energy Efficient, compliant with DOE 2016 standards
• Available in single and three-phase configurations

Product Highlights

This transformer is suitable for both indoor and outdoor applications, making it versatile for different environments. Its ventilated enclosure and NEMA 3R rating ensure durability and performance under various conditions.

Product Information

Standard Information

• Brand: SolaHD
• Manufacturer: Sola Electric

Technical Specifications

• Catalog Number: ES5H50S
• Power Rating: 50 KVA
• Primary Voltage: 240 x 480 V
• Secondary Voltage: 120/240 V
• Frequency: 60 Hz
• Mounting: Wall
• Phase: 1
• Temperature Rise: 150 Deg C
• Size: 18 in x 18 in x 31 in
• UPC: 78347200023
