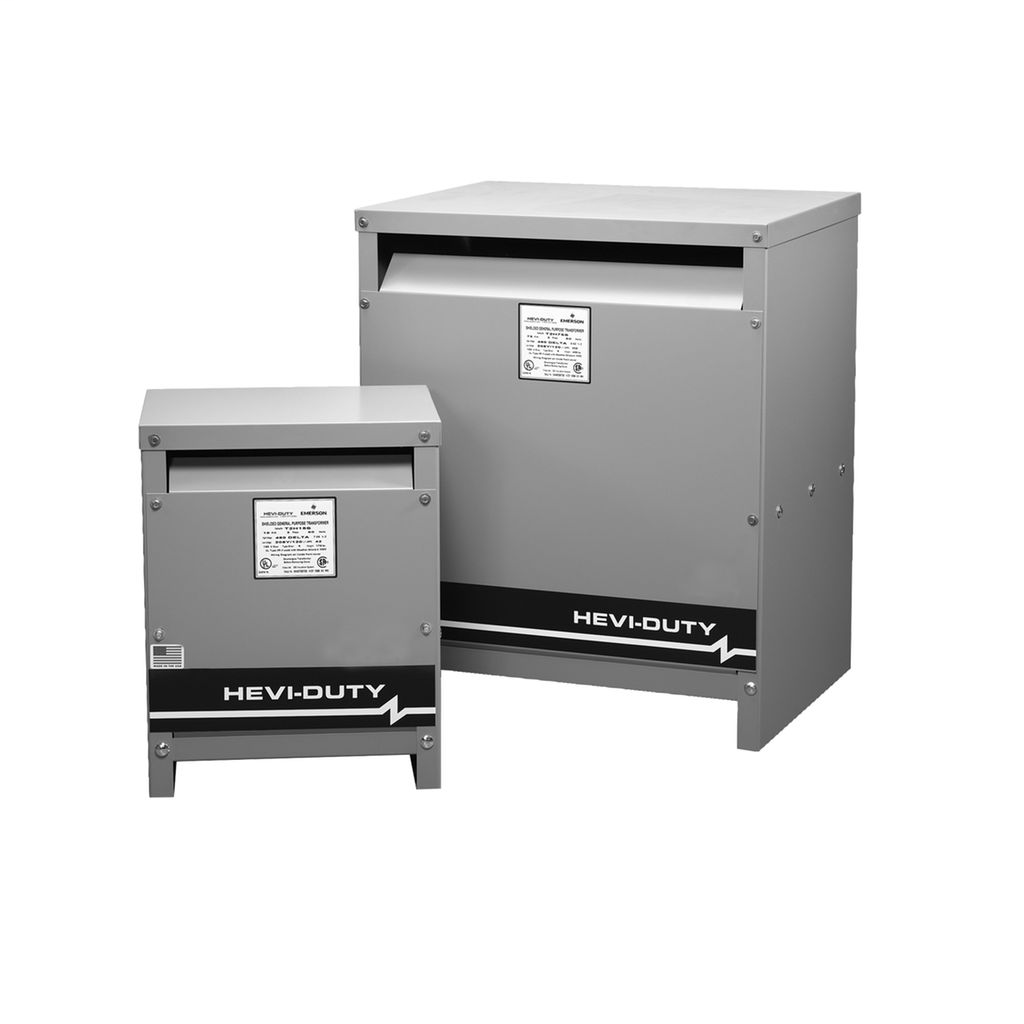

SolaHD ES5H37S SolaHD 37 kVa 240 x 480 VAC Primary 120/240 VAC Secondary 1-Phase Dry Type Distribution Transformer

Product Description

The SolaHD ES5H37S is a 37 kVa dry type distribution transformer designed for general purpose use. It features a primary voltage of two hundred forty by four hundred eighty VAC and a secondary voltage of one hundred twenty by two hundred forty VAC. This transformer is suitable for indoor and outdoor applications and meets UL and DOE energy efficiency standards.

• UL Listed and Energy Efficient
• Single-phase operation for versatility
• NEMA 3R enclosure with optional weather shields

Product Highlights

The SolaHD ES5H37S ensures reliable performance for a variety of electrical applications. It efficiently converts voltages to meet specific circuit requirements.

Product Information

Standard Information

• Manufacturer: SolaHD
• Model Number: ES5H37S

Technical Specifications

• Type: Ventilated Distribution Transformer
• Primary Voltage: 240 x 480 VAC
• Secondary Voltage: 120/240 VAC
• Power Rating: 37.5 kVA
• Temperature Rating: 150 Deg C Rise
• Dimensions: 16 in (W) x 31 in (H) x 16 in (L)
• Number of Phases: 1
• Weight: Specify as needed
