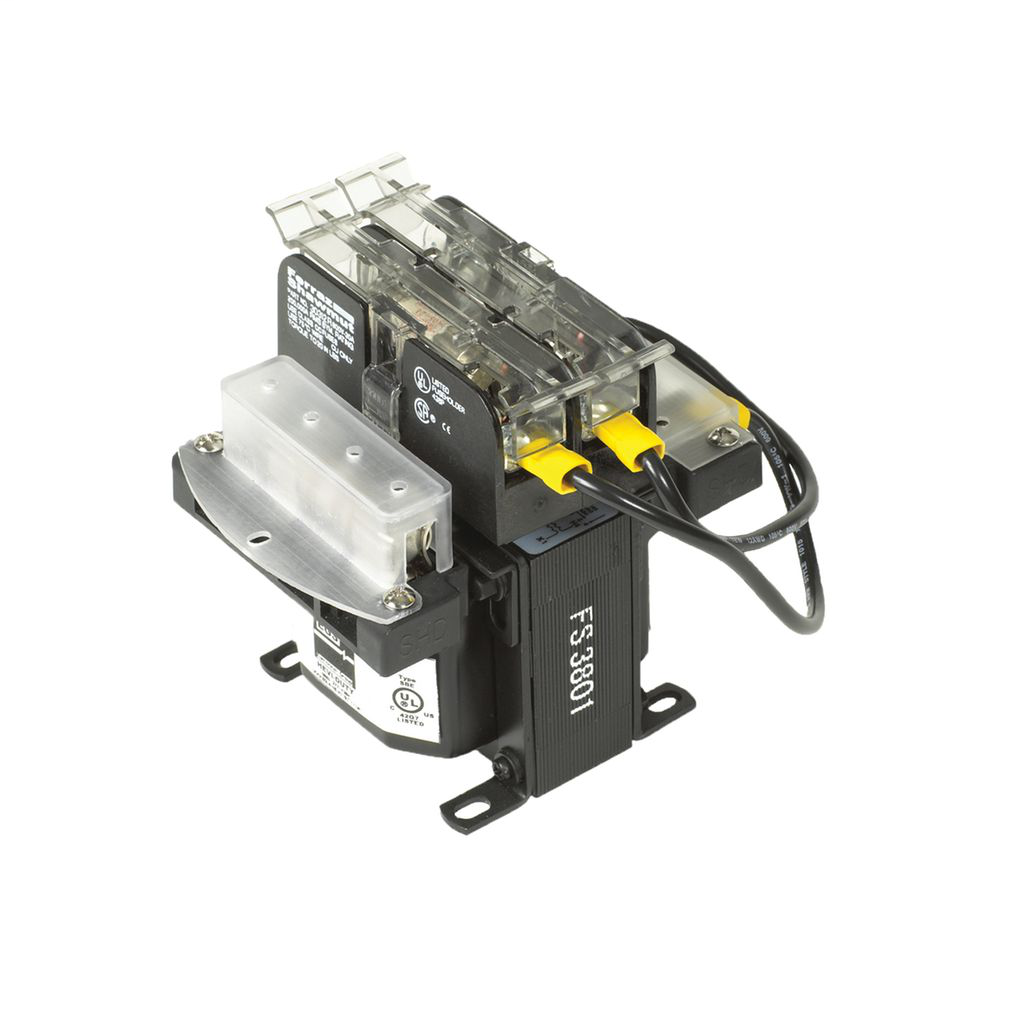

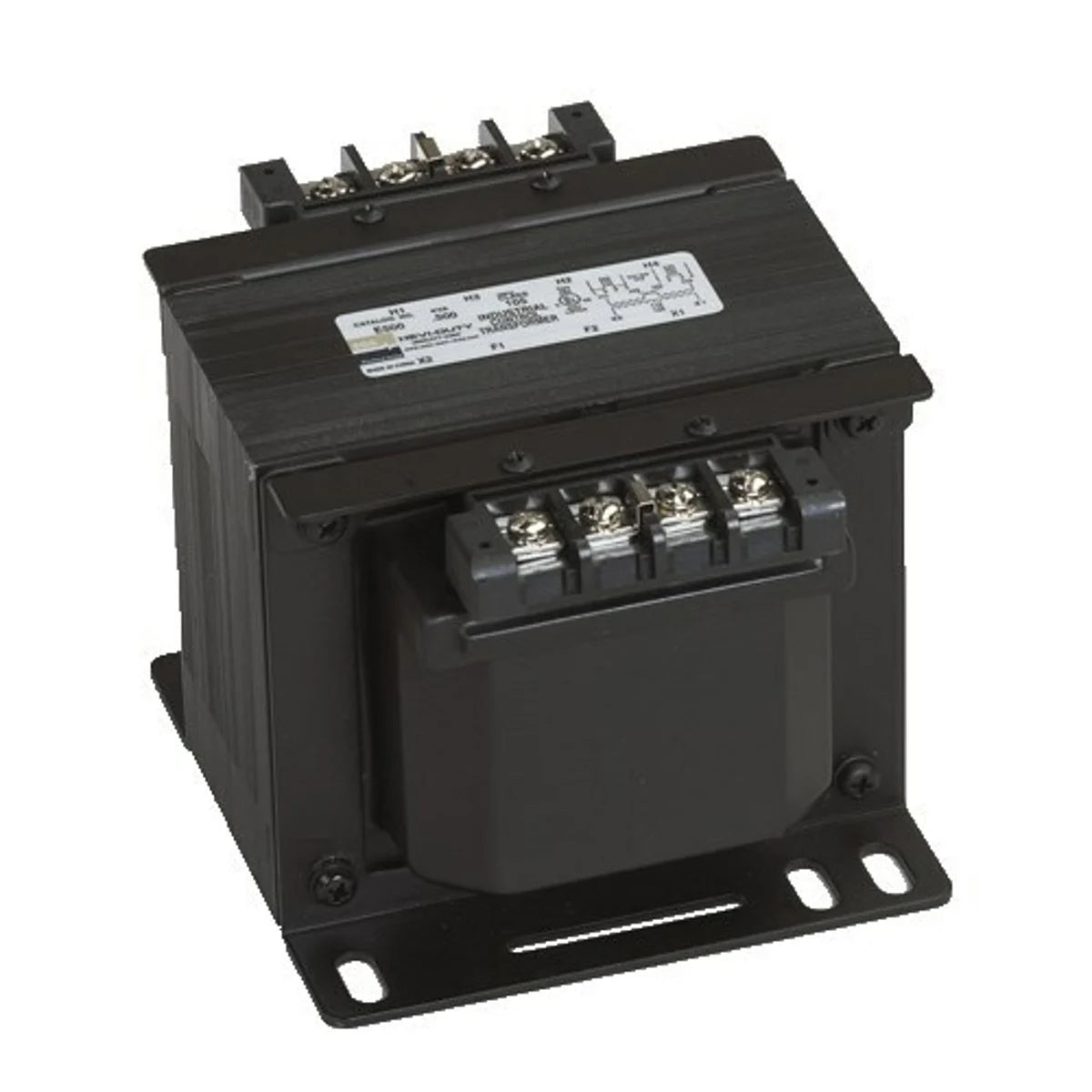

SolaHD E500 SBE Encapsulated Control Transformer 240/480 VAC Primary 120 VAC Secondary

Product Description

The SolaHD E500 is a SBE encapsulated industrial control transformer designed for reliable performance in harsh environments. This transformer operates with a primary voltage of 240 x 480 volts and a secondary voltage of 120 volts. It provides an output power of 500 VA and is ideal for various industrial applications.

• Sealed windings to protect against contaminants
• Compatible with similar transformer mounting dimensions
• Includes secondary fuse holders for added safety

Product Highlights

The SolaHD E500 transformer features a rugged construction and proven reliability, making it a strong choice for industrial settings.

Product Information

Standard Information

• Brand: SolaHD
• Manufacturer: Sola Electric

Technical Specifications

• Catalog Number: E500
• Primary Voltage: 240 x 480 Volts
• Secondary Voltage: 120 Volts
• Power Rating: 500 VA
• Wattage: 350 Watts
• Phase: 1
• Height: 4.53 inches
• Width: 5.25 inches
• Length: 5.07 inches
• Temperature Rise: 55 degrees Celsius
• Insulation Class: 105 degrees Celsius
• Mounting Type: Mounting plate
• Frequency Rating: 50/60 Hz
