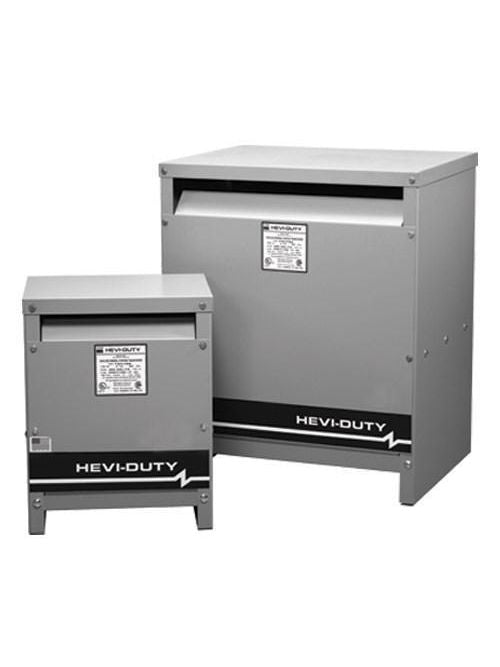

SolaHD E2H45S SHD E2H45S 45KVA 480D-208Y Transformer

Product Description

The SolaHD E2H45S is an energy-efficient dry-type transformer designed for robust power distribution. This model is compliant with DOE 2016 efficiency standards and features a power rating of forty-five KVA. It comes with UL listings, ensuring it meets safety standards for indoor or outdoor applications.

• Meets UL 1561 approval
• Constructed with a ventilated enclosure (NEMA Type 3R)
• High efficiency and low operating costs

Product Highlights

This transformer offers a temperature rise rating of one hundred fifty degrees Celsius under full load, making it suitable for demanding environments. The terminal board connections are easily accessible within a spacious wiring compartment.

Product Information

Standard Information

• Brand: SolaHD
• MPN: E2H45S

Technical Specifications

• Power Rating: 45 KVA
• Primary Voltage: 480 V Delta
• Secondary Voltage: 208/120 V
• Frequency Rating: 60 Hz
• Number of Phases: 3
• Size: 23 inches x 16 inches x 28 inches
• Temperature Rise: 150 degrees Celsius
• Winding Type: Copper/Aluminum
