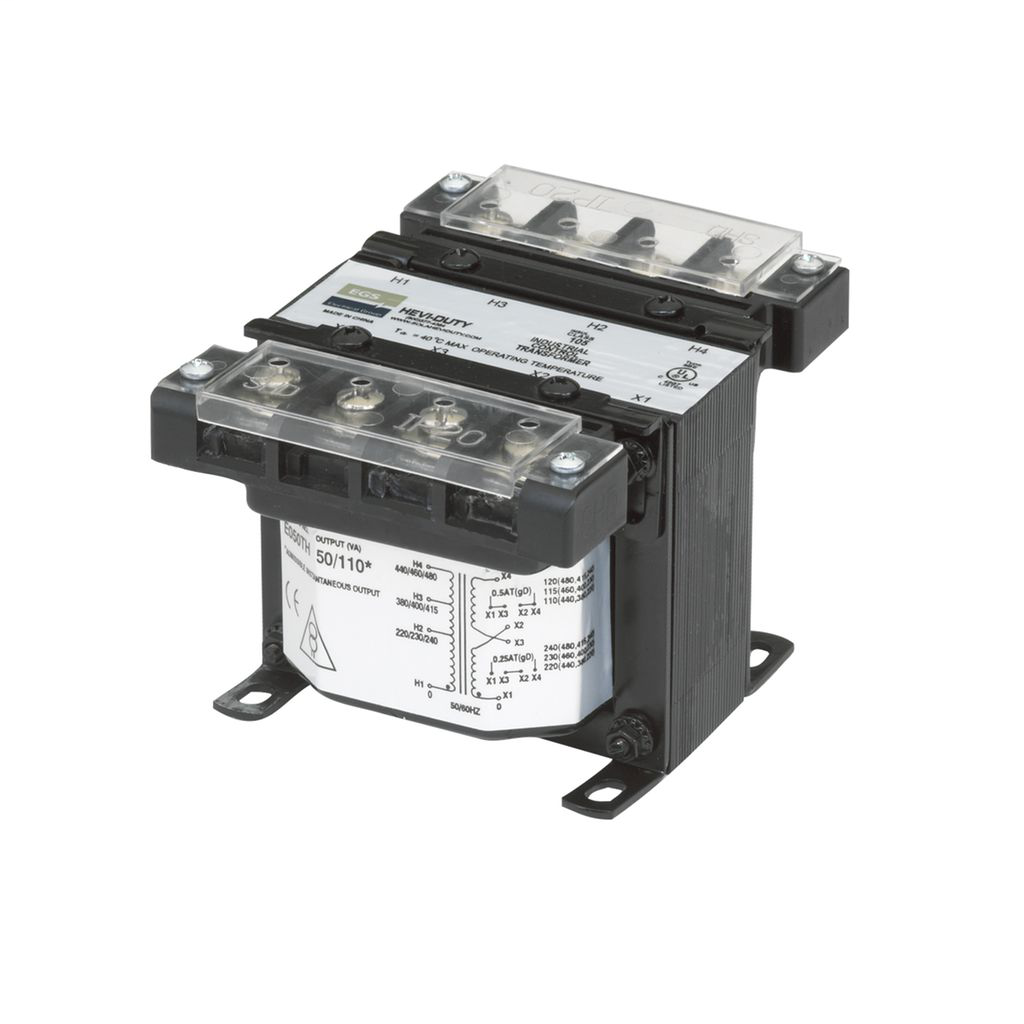

SolaHD E250TF SolaHD E250TF 250 VA 600 VAC Primary 120 VAC Secondary Industrial Control Transformer

Product Description

The SolaHD E250TF is a 250 VA industrial control transformer designed for primary voltages of up to 600 VAC and a secondary voltage of 120 VAC. This transformer is engineered to handle inrush currents that can reach up to ten times its nominal rating, ensuring voltage stability for electromagnetic control applications. The transformer complies with both IEC and NEMA standards and features touchproof covers for enhanced safety.

• Suitable for industrial applications with high inrush current needs.
• Meets IEC touchproof cover standards (IP20) for user safety.
• Epoxy encapsulation protects against moisture and contaminants.

Product Highlights

This transformer is suitable for various industrial settings and provides reliable performance under demanding conditions.

Product Information

Standard Information

• Brand: SolaHD
• Manufacturer: Sola Electric

Technical Specifications

• Catalog Number: E250TF
• Wattage: 150 VA
• Power Factor: 0.5
• Primary Voltage: 208/240/415/480/600 Volt Primary
• Secondary Voltage: 120 Volt Secondary
• Number of Phases: 1 Phase
• Width: 4.5 inches
• Height: 3.89 inches
• Length: 5.21 inches
• Enclosure: IP20
• Frequency Rating: 50/60 Hz
• Applications: Industrial
