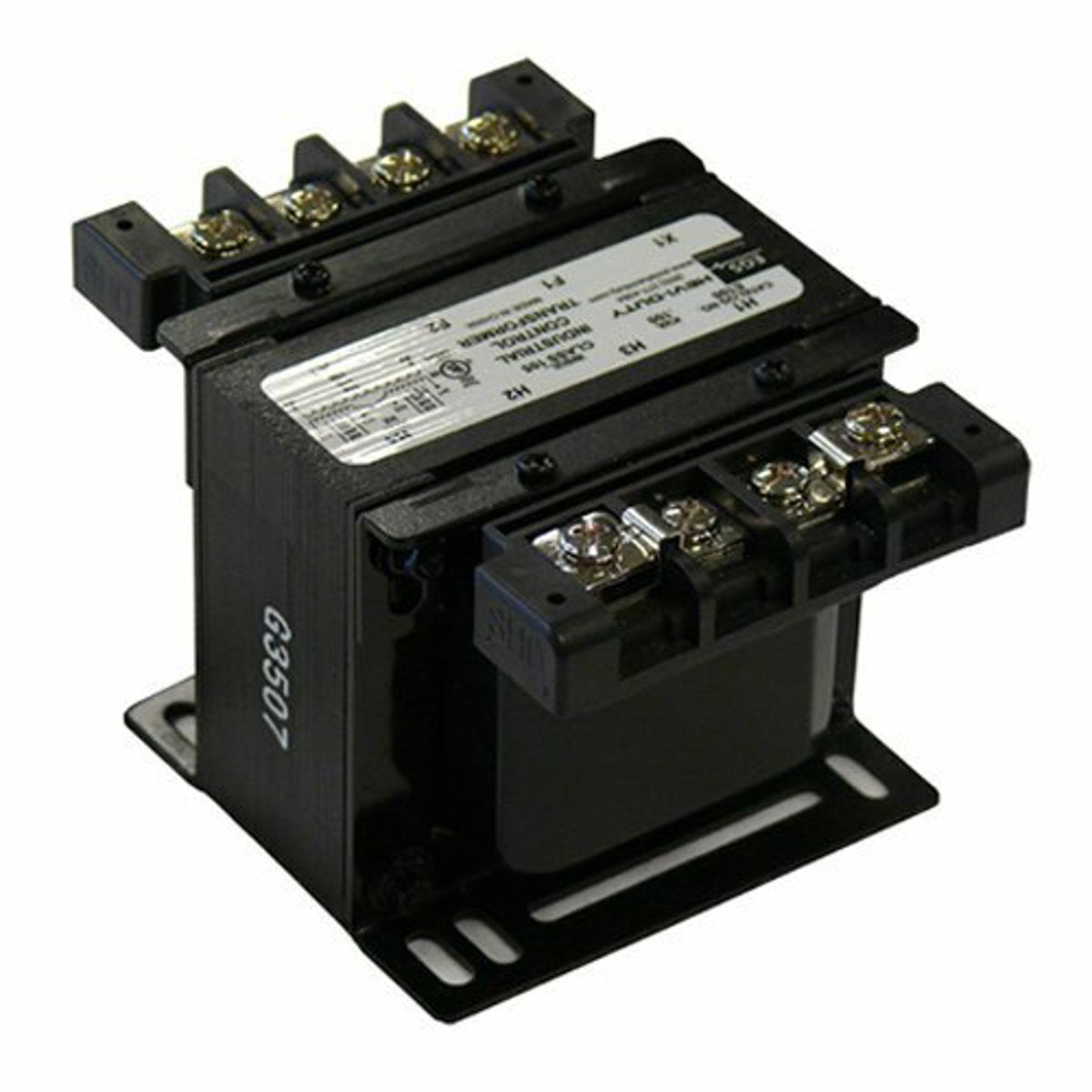

SolaHD E250JL 0.250 208/240/277-120/24 Power Transformer

Product Description

The SolaHD E250JL is a control transformer designed for power distribution. It operates at primary voltage levels of 208, 240, and 277 volts and provides a secondary voltage of 120/24 volts. This transformer supports applications in various industrial settings and is suitable for powering control circuits.

• Primary Voltage: 208/240/277 V
• Power Rating: 250 VA
• Mounting Plate Included

Product Highlights

The E250JL has an insulation class of 105 and features a temperature rise of 55 degrees Celsius. Its epoxy encapsulation protects against moisture and dirt, ensuring durability in challenging environments.

Product Information

Standard Information

• Manufacturer: SolaHD
• Brand: SolaHD
• Catalog Number: E250JL
• UPC: 783472533206
• Mounting: Mounting Plate

Technical Specifications

• Approval: UL 506, UL (Canada and US), CSA C22.2
• Frequency Rating: 60 Hz
• Insulation Class: 105
• Temperature Rise: 55 Deg C
• Terminal Type: Screw
• Size: 4.5 IN x 5.21 IN x 3.89 IN
• Phase: 1
• Product UPC: 783472533206
