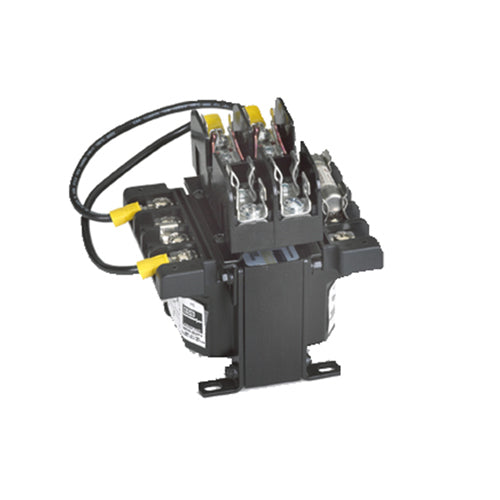

SolaHD E100E E100E 100VA INDL CNTRL TFMR

Product Description

The SolaHD E100E is an encapsulated industrial control transformer with a power rating of 100VA. It operates at a primary voltage of 120x240 volts and delivers a secondary voltage of 24 volts, making it suitable for various industrial applications.

• Encapsulated design for enhanced durability
• Heavy gauge steel mounting plate included
• cULus Listed for safety compliance

Product Highlights

This transformer is designed for use in industrial environments, providing reliable performance with a frequency rating of 60 Hz.

Product Information

Standard Information

• Brand: SolaHD
• Manufacturer: Sola Hevi-Duty

Technical Specifications

• Type: SBE Encapsulated Series Transformer
• Primary Voltage: 120 x 240 Volt Primary
• Secondary Voltage: 24 Volt Secondary
• Wattage: 75 W
• Frequency Rating: 60 Hz
• Number of Phases: 1
• Weight: 4.7 lbs
• Height: 2.96 inches
• Width: 4.36 inches
• Length: 3.39 inches
• Application: Industrial
• Mounting: Heavy Gauge Steel Mounting Plate
• Standard: cULus Listed: E77014; UL 506; CSA C22.2 No. 66; RoHS Compliant
