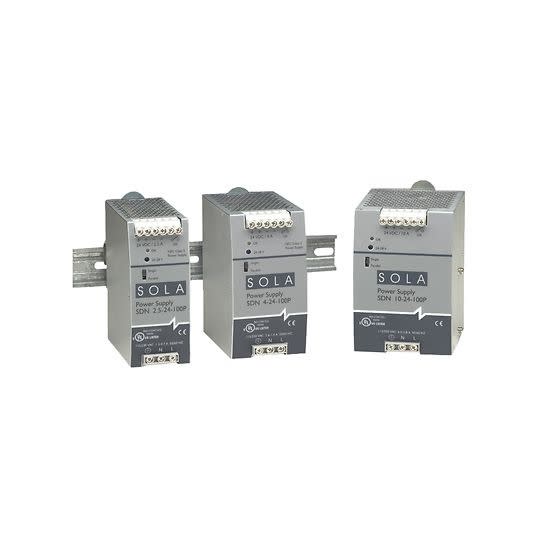

SOLA SDN10-24-100P 24V 10A DIN Rail Power Supply

Product Description

The SOLA SDN10-24-100P is a reliable single-phase DIN rail power supply designed for various applications. It features an auto-select input of 115/230 Vac, 50/60 Hz, and a range of 90-375 Vdc. This unit ensures an adjustable output voltage of 24 Vdc, with a current output of 10A, offering a total output power of 240W. The operational temperature range is from -10 degrees Celsius to +60 degrees Celsius, making it suitable for diverse environments.

• Single-phase power supply with auto-select input options.
• Short circuit, overvoltage, and overtemperature protection included.
• Compatible with DIN TS35/7.5 or TS35/15 for easy mounting.

Product Highlights

This power supply is equipped with safety features such as power factor correction and Sag Immunity per SEMI F47 standards.

Product Information

Standard Information

• Brand: SOLA
• MPN: SDN10-24-100P

Technical Specifications

• Input Voltage Range: 115-230 Vac, 90-375 Vdc
• Output Voltage Range: 24 Vdc (22.5-28.5 adjustable)
• Output Current: 10A
• Output Power: 240W
• Operating Temperature: -10 degrees Celsius to +60 degrees Celsius
• Number of Phases: Single
• Status Indicator: Visual Green LED, DC OK
• Mounting: DIN TS35/7.5 or TS35/15
