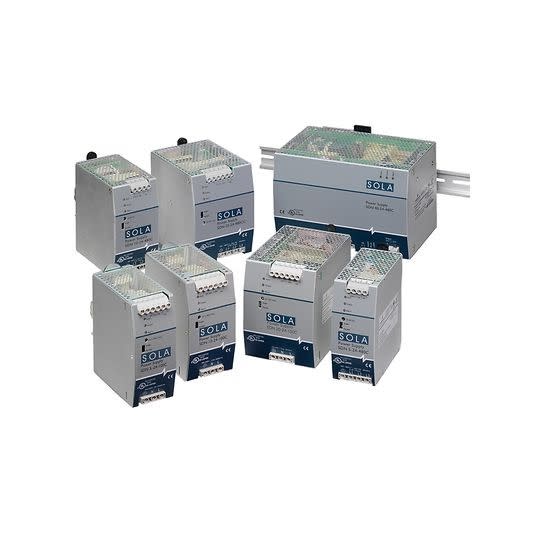

SOLA SDN10-24-100C DIN Rail Power Supply

Product Description

The SOLA SDN10-24-100C is a DIN rail power supply designed to provide a reliable 24 VDC output at a maximum of 10A, delivering a total output power of 240W. This unit supports universal AC and DC input voltages, making it versatile for various installations.

• Dual output terminals for easy wiring
• Three diagnostic LEDs for status indication
• User-adjustable output voltage accessible from the front

Product Highlights

The SOLA SDN10-24-100C features a robust metal case and DIN connector suitable for industrial environments. It operates effectively within temperatures ranging from -10°C to 60°C without derating. The inclusion of a DC OK relay allows for diagnostics to be relayed to controllers or monitoring systems.

Product Information

Standard Information

• Brand: SOLA
• MPN: SDN10-24-100C

Technical Specifications

• Input Voltage Range: 1-Phase: 100-240 Vac; 3-Phase: 380-480 Vac
• Output Power: 240W
• Output Voltage Range: 12 V (12-15 Vdc Adj.) or 24 V (23.5-28.5 Vdc Adj.)
• Output Current: 10A
• Operating Temperature: -40°C to +70°C
• Mounting: DIN TS35/7.5 or TS35/15
• Overload Capability: > 30.5 but < 33 Vdc, auto recovery
• Status Indicator: 3 status LEDs (Input, Output, Alarm)
