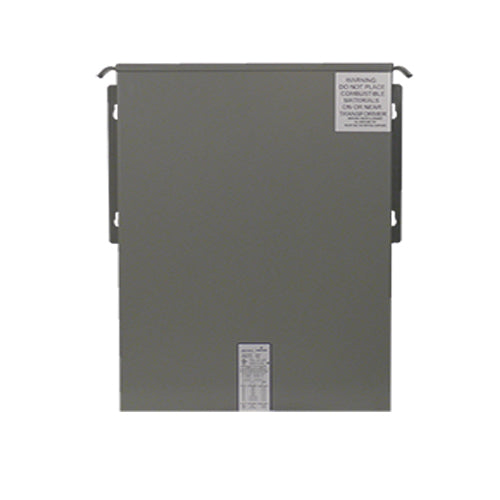

SOLA HS5F7.5AS 7.5KVA 240X480-120/24

Product Description

The SOLA HS5F7.5AS transformer provides a reliable solution for power conversion in industrial applications. This transformer is ideal for environments that demand durability and efficiency. It offers a power capacity of seven point five KVA with a primary voltage of two hundred forty by four hundred eighty VAC at sixty Hertz. The secondary voltage is one hundred twenty by two hundred forty VAC at sixty Hertz.

• Single-phase operation
• NEMA Type 3R encapsulated design
• Suitable for indoor and outdoor service

Product Highlights

This transformer is designed for harsh conditions and features a UL listed NEMA three R enclosure. It incorporates a temperature rise rating of one hundred fifteen degrees Celsius under full load, making it suitable for demanding industrial settings.

Product Information

Standard Information

• Manufacturer: Sola Hevi-Duty
• Part Number: SOLAHS5F75

Technical Specifications

• KVA Rating: 7.5
• Input Voltage: 240 x 480 Volt Primary VAC
• Output Voltage: 120/240 Volt Secondary
• Frequency Rating: 60 Hz
• Number of Phases: 1
• Weight: 156 lbs
• Width: 14 inches
• Height: 17 inches
• Length: 9 inches
• Special Features: UL Listed/NEMA Type 3R encapsulated enclosure for indoor and outdoor service
