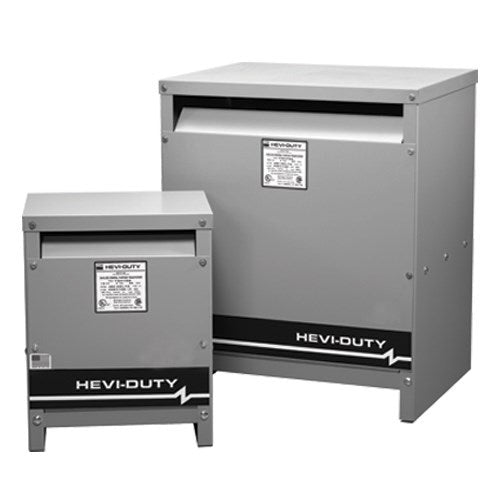

Sola Hevi-Duty E5H30S 30KVA 480D-240DCT

Product Description

The Sola Hevi-Duty E5H30S is a ventilated distribution transformer with a KVA rating of thirty. It operates at a primary voltage of four hundred eighty volts and a secondary voltage of two hundred forty volts, suitable for various applications requiring voltage adjustments. Designed for compliance with DOE 10 CFR P431, this transformer meets strict energy efficiency standards. It features a solid aluminum winding and can be mounted on the floor or wall, supporting up to five hundred pounds.

• UL Listed E25872 for safety and reliability.
• Seven taps for flexible voltage configuration.
• Temperature rating of one hundred fifty degrees Celsius for high performance.

Product Highlights

This transformer is efficient with a performance rating of ninety-eight point twenty-five percent, making it suitable for industrial and commercial applications.

Product Information

Standard Information

• Manufacturer: Sola Hevi-Duty
• Model: E5H30S

Technical Specifications

• KVA Rating: 30 kVA
• Primary Voltage: 0.48 kV
• Secondary Voltage: 0.24 kV
• Number of Phases: 3
• Frequency Rating: 60 Hz
• Cooling Type: AA
• Winding Material: Aluminum
• Weight: 322 lbs
• Dimensions: 16 in (W) x 28 in (H) x 23 in (L)
• Temperature Rating: 150 Degrees C
• Insulation Class: 220 Degrees C
• Number of Taps: 7
• Enclosure Type: NEMA Type 1
• Special Features: DOE 10 CFR P431 - DOE 2016 Compliant
