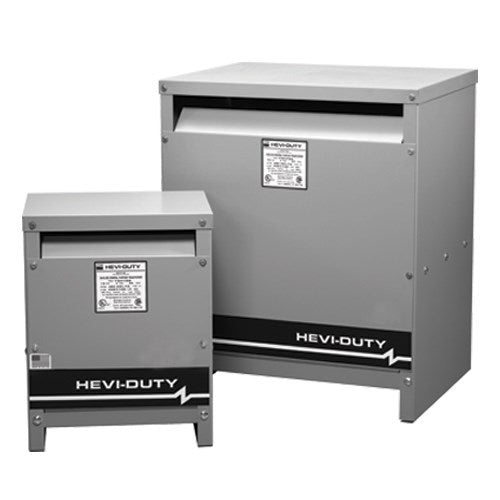

Sola Hevi-Duty E2H75S 75KVA 480D-208Y

Product Description

The Sola Hevi-Duty E2H75S is a ventilated distribution transformer designed for efficient voltage transformation. With a KVA rating of 75, this transformer operates at a primary voltage of four hundred eighty volts and delivers a secondary voltage of two hundred eight volts. The transformer is compliant with DOE 10 CFR P431 - DOE 2016 standards and is UL listed under E25872, ensuring high reliability in various electrical applications.

• Rated for 75 kVA, suitable for heavy-duty use
• Features seven taps for flexible voltage adjustment
• Constructed with a NEMA Type 1 enclosure for indoor applications

Product Highlights

The E2H75S transformer provides robust performance for industrial and commercial environments, enabling effective voltage management where necessary.

Product Information

Standard Information

• Brand: Sola Hevi-Duty
• Minimum Order Quantity: 1

Technical Specifications

• KVA Rating: 75 kVA
• Primary Voltage: 0.48 kV
• Secondary Voltage: 0.208 kV
• Number of Phases: 3
• Frequency Rating: 60 Hz
• Cooling: AA
• Winding Material: Aluminium
• Enclosure Type: NEMA Type 1
• Temperature Rating: 150 degrees C
• Efficiency: 98.6%
• Standard Compliance: UL Listed E25872
• Insulation Class: UL Class 220 degrees C
• Number of Taps: 7
• Mounting Type: Floor
• Application: For voltage adjustments in various settings
