Sola Hevi-Duty E2H45S 45KVA 480D-208Y

Product Description

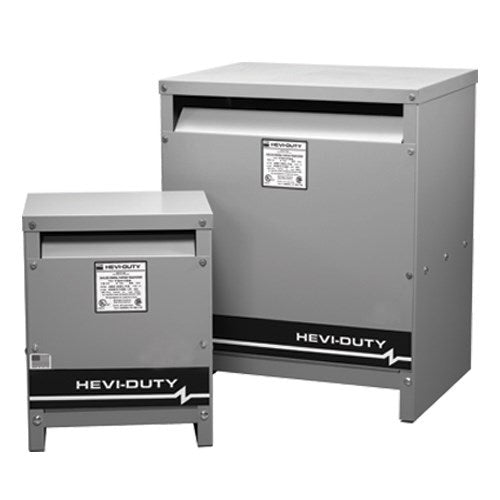

The Sola Hevi-Duty E2H45S is a ventilated distribution transformer designed for power distribution. This transformer is DOE 10 CFR P431 compliant and UL Listed E25872, ensuring safety and performance standards are met. It is rated at 45 kVA, providing reliable voltage conversion for various applications.

• Primary Voltage: 480 volts
• Secondary Voltage: 208 volts
• Temperature Rating: 150 degrees Celsius

Product Highlights

This transformer is suitable for situations needing a change in voltage to accommodate various electrical systems. It features seven taps for flexibility in voltage adjustment and operates at 60 Hz with three phases to provide stable power output.

Product Information

Standard Information

• Brand: Sola Hevi-Duty
• Manufacturer: Sola Hevi-Duty

Technical Specifications

• KVA Rating: 45 kVA
• Primary Voltage: 0.48 kV
• Secondary Voltage: 0.208 kV
• Number of Phases: 3
• Number of Taps: 7
• Temperature Rating: 150 degrees Celsius
• Cooling: AA
• Winding: Aluminium
• Mounting: Floor/Wall (up to 500 lb max)
• Efficiency: 98.4%
• Insulation Class: UL Class 220 degrees Celsius
• Enclosure: NEMA Type 1
• Special Features: DOE 10 CFR P431 - DOE 2016 compliant
