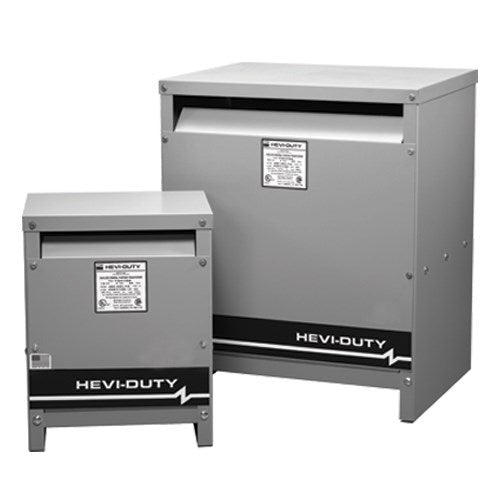

Sola Hevi-Duty E2H30S Ventilated Distribution Transformer 30 kVA 480D-208Y

Product Description

Sola Hevi-Duty E2H30S is a ventilated distribution transformer designed for effective voltage transformation. This transformer offers a primary voltage of four hundred eighty volts and a secondary voltage of two hundred eight volts. It is ideal for applications requiring a reliable power source.

• Voltage transformation from 480V to 208V
• Complies with DOE 10 CFR P431 standards
• UL Listed for safety and performance

Product Highlights

This model is suitable for various electrical applications, designed to meet energy efficiency standards.

Product Information

Standard Information

• Manufacturer: SOLA HEVI-DUTY
• Family Group: TRANSFORMERS

Technical Specifications

• Type: Ventilated Distribution Transformer
• KVA Rating: 30 kVA
• Primary Voltage: 0.48 kV
• Secondary Voltage: 0.208 kV
• Number of Phases: 3
• Number of Taps: 7
• Temperature Rating: 150 Degrees C
• Connection: Delta
• Insulation Class: UL Class 220 Degrees C
• Efficiency: 98.25%
• Cooling: AA
• Mounting: Floor/Wall (up to 500lbs max)
• Enclosure: NEMA Type 1
• Frequency Rating: 60 Hz
