Sola Hevi-Duty E2H112S 112.5KVA 480D-208Y Replacement MPN

Product Description

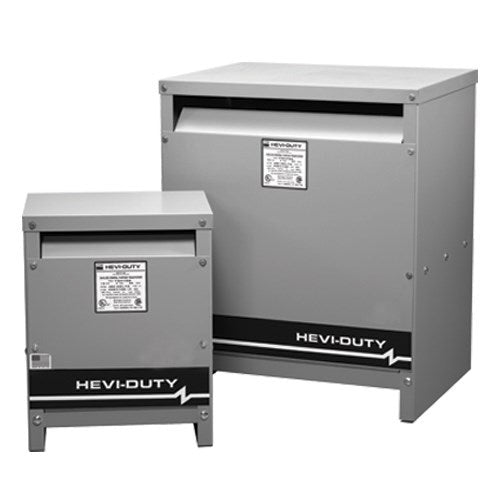

The Sola Hevi-Duty E2H112S is a ventilated distribution transformer with a power rating of 112.5 kVA. This product supports primary voltage of four hundred eighty volts and secondary voltage of two hundred eight volts. Built for efficiency, it meets DOE 10 CFR P431 - DOE 2016 compliance and is UL listed.

• Rated for three phases and 60 Hz frequency.
• Temperature withstand capacity of one hundred fifty degrees Celsius.
• Includes seven taps for flexible voltage adjustments.

Product Highlights

This transformer is ideal for applications that require changing available voltage levels, ensuring power is efficiently distributed to meet operational demands.

Product Information

Standard Information

• Brand: Sola Hevi-Duty
• Part Number: SOLAE2H112

Technical Specifications

• KVA Rating: 112.5 kVA
• Primary Voltage: 480 V
• Secondary Voltage: 208 V
• Number of Phases: 3
• Number of Taps: 7
• Cooling Type: AA
• Weight: 803 lbs
• Dimensions: 28 in (L) x 22 in (W) x 34 in (H)
