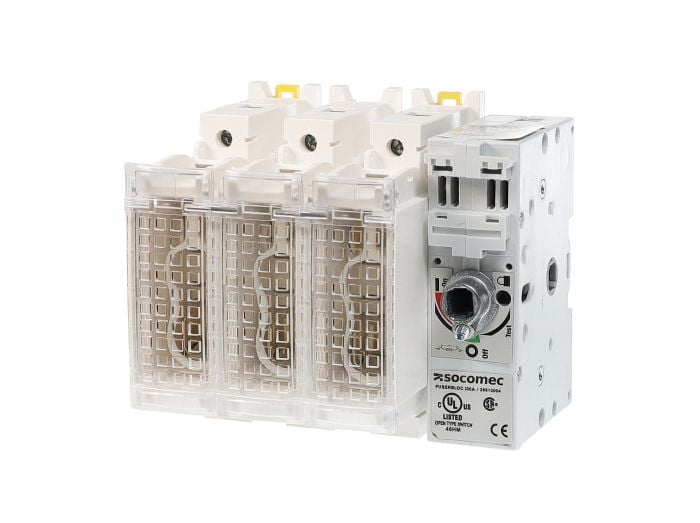

Socomec 38613005 FUSERBLOC TS J 3X60A F/L 100kA

Product Description

The SOCOMEC 38613005 FUSERBLOC fusible disconnect switches are heavy-duty switches designed to make and break power circuits on and off load. These switches utilize double break contacts per pole, ensuring complete fuse isolation when in the off position. Durable and tested for demanding applications.

• Improved safety
• High breaking capacity
• Multi-use
• Simplified use

Product Highlights

FUSERBLOC switches ensure complete isolation and are suitable for various applications.

Product Information

Standard Information

• Brand: SOCOMEC
• Manufacturer Part Number: 38613005
• Country of Origin: TN

Technical Specifications

• Manufacturer: SOCOMEC
• Height [mm]: 136
• Width [mm]: 149.3
• Depth [mm]: 123
• Fuse size: J
• Number of poles: 3
• Rated current [A]: 60
• Type: I-0-Test
• Frame size: 4
• Max. connection section / AWG: #6
• Min. connection section / AWG: #10
• Operating temperature: -4 ... +122 00b0F / -20 ... +50 00b0C
• Storage temperature: -40 ... +158 00b0F / -40 ... +70 00b0C
• DC FLA motor max. / 125 VDC [Hp/A]: 03/25
• DC FLA motor max. / 250 VDC [Hp/A]: 10/38
• FLA 1 ph motor max. / 120 VAC [Hp/A]: 5/56
• FLA 1 ph motor max. / 220-240 VAC [Hp/A]: 10/50
• FLA 3 ph motor max. / 220-240 VAC [Hp/A]: 15/42
• FLA 3 ph motor max. / 440-480 VAC [Hp/A]: 30/40
• FLA 3 ph motor max. / 600 VAC [Hp/A]: 50/52
• Endurance (number of operating cycles): 10000
• Operating torque [lbs.in/Nm]: 71/8
• Auxiliary contacts / Electrical characteristics: A600
• Max fuse rating [A]: 60
• Operation voltage 2 P - 3/4 P: 600VAC
• Short circuit rating at 600 VAC [kA]: 100
• Type of fuse: J
• UL General use rating [A]: 60
• Max. rated operation voltage Ue AC [V]: 600
• Rated permanent current Iu [A]: 60
• Conditioned rated short-circuit current Iq [kA]: 100
• Cable entry: Top/bottom
• Equipped with connectors: No
• Suitable for floor mounting: Yes
• Suitable for front mounting: Yes
• Suitable for busbar mounting: No
• Degree of protection (IP), front side: IP20
• Version as main switch: Yes
• Version as safety switch: Yes
• Suitable for fuses: Other
• With error protection: No
• Type of electrical connection of main circuit: Frame clamp
• Type of control element: Long turning handle
• Position control element: Front side
• Motor drive optional: No
• Motor drive integrated: No
• Version as emergency stop installation: Yes
• Product Series: FUSERBLOC
• Family Series: Socomec Disconnect Switches, FUSERBLOC Series
• Description: FUSERBLOC TS J 3X60A F/L 100kA
• Poles: 3
• Current Rating: 60 A
• AC Voltage: 600 VAC
• Operator Type: Front
• Mounting: DIN, Panel
• Fusible: Yes
• Class: J
• Auxiliary Contact: NC/NO
• Approvals: CSA, UL
