Snappy p5-626 Straight Register Boot 6x12 Galvanized

Product Description

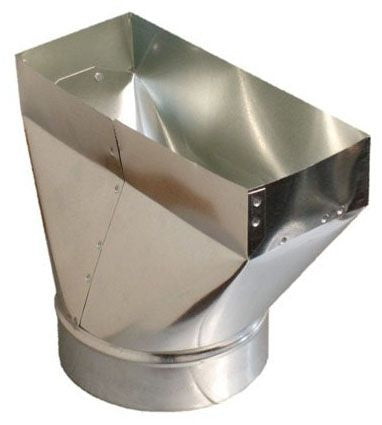

The SNAPPY p5-626 is a galvanized steel straight register boot designed to connect round duct to a floor, wall, or ceiling register opening in residential and light commercial HVAC duct systems. It features a 6-inch round collar on one end and a 6-inch by 12-inch rectangular register opening on the other, allowing a smooth transition from round supply duct to a standard register face. The galvanized construction resists corrosion in typical duct environments. HVAC installers and sheet metal contractors use this fitting during new construction and retrofit work to terminate supply duct runs at the register location.

This register boot is suited for supply air applications in forced-air heating and cooling systems. It is commonly installed in residential homes and light commercial spaces where a 6-inch round duct run must terminate at a 6-inch by 12-inch floor, sidewall, or ceiling register. The straight configuration keeps the fitting profile low-profile in tight framing cavities and works well in both floor and wall installations where duct enters perpendicular to the register face.

Key Features

• 6-inch round collar connects directly to 6-inch round supply duct
• 6-inch by 12-inch rectangular register opening fits standard register grilles of the same size
• Straight boot configuration for direct perpendicular duct-to-register transitions
• Galvanized steel construction provides corrosion resistance in conditioned-air applications
• Compatible with standard snap-lock or slip-fit round duct connections

Compatibility

Designed as an OEM-style replacement and new-installation fitting for residential and light commercial forced-air duct systems using 6-inch round supply duct terminated at a 6-inch by 12-inch register opening.

Installation Notes

Installation is typically performed by a licensed HVAC technician or sheet metal contractor. Shut off the air handling unit and verify the system is not under pressure before connecting or modifying ductwork. Secure the round collar to the supply duct using sheet metal screws and seal all joints with UL 181-rated duct mastic or foil tape per local mechanical codes. Ensure the register opening is flush with the finished surface before fastening the register grille.

Technical Specifications

• Type: Straight Register Boot
• Round Collar Diameter: 6 inches
• Register Opening Size: 6 inches x 12 inches
• Material: Galvanized Steel

Standard Information

• Brand: SNAPPY
• Manufacturer Part Number: p5-626
