Snappy p17c-226 Center End Register Boot 6 in Collar

Product Description

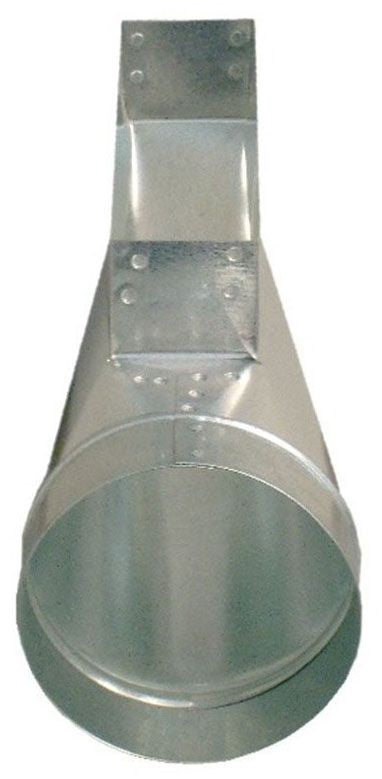

The SNAPPY p17c-226 is a galvanized steel center end register boot designed for residential and light commercial HVAC duct distribution systems. This fitting transitions from a round collar to a rectangular plenum or duct opening, directing conditioned air to a floor, wall, or ceiling register. The boot features a 6-inch round collar and a 2.25 x 12 inch rectangular fitting opening. It is typically installed by HVAC technicians and sheet metal contractors during new construction or duct retrofit work.

This register boot is suited for low-pressure supply air applications where a round branch duct connects to a standard register or grille opening. The 2.25 x 12 inch face opening accepts commonly sized floor and wall registers in residential forced-air systems. The galvanized steel construction resists corrosion in both conditioned and unconditioned spaces such as crawlspaces and attics.

Key Features

• 6-inch round collar connects directly to round branch duct
• 2.25 x 12 inch rectangular opening fits standard register sizes
• Center end configuration suits typical floor or sidewall register installations
• Galvanized steel construction provides corrosion resistance
• Lightweight at 0.80 pounds for easy single-technician handling

Compatibility

Designed as an OEM-style replacement or new-installation fitting for residential and light commercial forced-air duct systems using 6-inch round branch ducts and 2.25 x 12 inch register openings.

Installation Notes

Installation is typically performed by a licensed HVAC technician or sheet metal contractor. Shut down the air handling unit and close the system dampers before fitting the boot into the duct system. Seal all joints with UL 181-rated mastic or approved foil tape to meet energy code requirements. Sheet metal screws are commonly used to secure the boot to the surrounding duct work before the register face is attached.

Technical Specifications

• Fitting Size: 2.25 x 12 inches
• Collar Diameter: 6 inches
• Type: Center End Register Boot
• Material: Galvanized Steel
• Weight: 0.80 pounds

Standard Information

• Brand: SNAPPY
• Manufacturer Part Number: p17c-226
