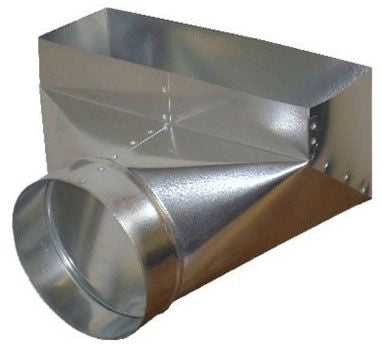

Snappy p13-206 90 Degree Register Boot 2.25x10 6in

Product Description

The SNAPPY p13-206 is a 90-degree galvanized steel register boot designed to transition from round duct to a rectangular floor or ceiling register opening. The fitting connects a 6-inch round collar to a 2.25 x 10 inch rectangular face, making the turn at a 90-degree angle to direct conditioned air through a standard register grille. This type of boot is a common component in residential and light commercial forced-air HVAC systems. Sheet metal fabricators and HVAC installers fit these boots at the end of branch duct runs where the supply duct terminates at a register opening in the floor, wall, or ceiling.

This boot is suited for residential supply air applications where a 6-inch round branch duct must transition to a 2.25 x 10 inch register opening at a 90-degree angle. The galvanized steel construction holds up in attic, crawl space, and framed floor cavity installations. It is a standard fitment in trunk-and-branch duct systems using sheet metal distribution, typically installed during new construction or duct replacement work.

Key Features

• 90-degree elbow configuration transitions round duct to rectangular register face
• 6-inch round collar inlet connects directly to standard 6-inch round branch duct
• 2.25 x 10 inch rectangular face fits standard register grille openings of that size
• Galvanized steel construction resists corrosion in unconditioned spaces
• Lightweight at 0.50 pounds for easy single-person handling during installation

Compatibility

Designed as an OEM-style sheet metal fitting for residential and light commercial forced-air supply duct systems using 6-inch round branch duct and 2.25 x 10 inch rectangular register openings.

Installation Notes

Installation is performed by licensed HVAC technicians or sheet metal mechanics. Power down the air handler and close the system dampers before cutting into existing ductwork. Secure the boot to the branch duct with sheet metal screws and seal all joints with UL 181-rated mastic or foil tape per local mechanical code requirements. Do not use standard cloth duct tape as a primary sealant on supply air fittings.

Technical Specifications

• Fitting Size (Rectangular Face): 2.25 x 10 inches
• Collar Diameter: 6 inches
• Elbow Degree: 90 degrees
• Type: 90 Degree Register Boot
• Material: Galvanized Steel
• Weight: 0.50 pounds

Standard Information

• Brand: SNAPPY
• Manufacturer Part Number: p13-206
