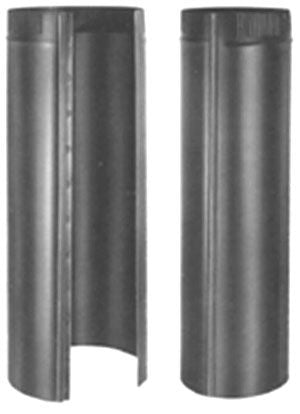

Snappy 906242 Black Stovepipe 6 in 24 in 24 Gauge

Product Description

The SNAPPY 906242 is a 24-gauge single-wall black stovepipe section used to connect wood stoves, coal stoves, and other solid-fuel appliances to their chimney flue or B-vent collar. Measuring 6 inches in diameter and 24 inches in length, this pipe section handles the transfer of combustion gases from the appliance to the venting system. The 24-gauge steel construction provides the structural rigidity and heat resistance expected in residential stovepipe applications. Installation is performed by experienced HVAC technicians or qualified stove installers following local building and fire codes.

This pipe section is suited for residential solid-fuel heating appliance installations where a 6-inch diameter connector pipe is required. It serves as a straight run section between the stove collar and an elbow, tee, or chimney thimble. The 24-inch length makes it a standard intermediate connector in typical single-story or basement installations where short straight runs are needed to complete the venting assembly.

Key Features

• 6-inch diameter fits standard 6-inch stove collar and chimney connector fittings
• 24-inch length provides a common straight-run segment for residential venting layouts
• 24-gauge steel construction offers durability for single-wall stovepipe service
• Black finish provides a traditional appearance consistent with solid-fuel appliance aesthetics
• Lightweight at 0.50 pounds for easy handling during installation

Compatibility

Designed as a standard single-wall black stovepipe connector for residential solid-fuel heating appliances requiring a 6-inch diameter venting component.

Installation Notes

Single-wall black stovepipe must be installed by a qualified technician in accordance with local fire codes and the appliance manufacturer instructions. Allow the appliance to cool completely before servicing or replacing any section of the venting system. Maintain required clearances to combustibles as specified by local codes and NFPA 211. Single-wall pipe is not approved for use inside wall cavities, floors, ceilings, or attics and must transition to an approved listed chimney system at the required point.

Technical Specifications

• Pipe Diameter: 6 inches
• Pipe Length: 24 inches
• Gauge: 24 gauge
• Finish: Black
• Item Weight: 0.50 pounds

Standard Information

• Brand: SNAPPY
• Manufacturer Part Number: 906242
