Snappy 82-061408 Funnel Floor Register Pan 6x14 8in

Product Description

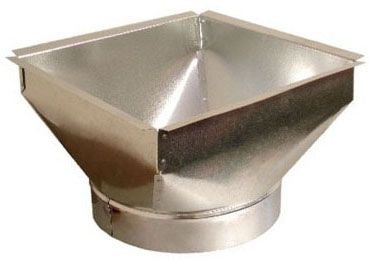

The SNAPPY 82-061408 is a galvanized steel funnel floor register pan designed for residential and light commercial HVAC duct systems. This fitting transitions supply air from a round or rectangular trunk duct to a floor-mounted register opening. The pan measures 6 inches by 14 inches at the register face with an 8-inch depth, providing the drop distance needed to reach subfloor duct connections. HVAC installers and sheet metal technicians use this pan during new construction or system retrofit work where a floor diffuser is required. Galvanized steel construction resists corrosion in unconditioned spaces such as crawl spaces and basement cavities.

This funnel pan is suited for floor-register applications in forced-air heating and cooling systems. It fits into framed floor cavities during rough-in and connects the supply trunk to a 6-inch by 14-inch floor grille or register. Typical installations occur in single-family residential construction and light commercial buildings where floor registers are the preferred diffuser style. The 8-inch depth accommodates standard floor joist cavities and allows proper connection to round or rectangular supply branches.

Key Features

• 6 inch by 14 inch register face fits standard floor grille openings
• 8 inch pan depth suits typical subfloor duct cavity installations
• Galvanized steel construction provides corrosion resistance in exposed or semi-exposed environments
• Funnel design transitions supply airflow smoothly to the floor register opening
• Lightweight at 0.80 pounds for easy single-technician handling during rough-in

Compatibility

Designed as an OEM-style replacement and new-installation fitting for forced-air HVAC systems requiring a 6 inch by 14 inch funnel floor register pan with 8 inch depth.

Installation Notes

Installation is performed by licensed HVAC technicians or qualified sheet metal installers. Shut down the air handler and confirm the system is de-energized before connecting or sealing ductwork. Seal all joints with UL-listed duct sealant or approved foil tape per local mechanical codes to prevent air leakage. Secure the pan to framing or duct connections using sheet metal screws appropriate for the gauge of the pan material.

Technical Specifications

• Fitting Size: 6 inches x 14 inches
• Pan Depth: 8 inches
• Material: Galvanized Steel
• Item Weight: 0.80 pounds

Standard Information

• Brand: SNAPPY
• Manufacturer Part Number: 82-061408
