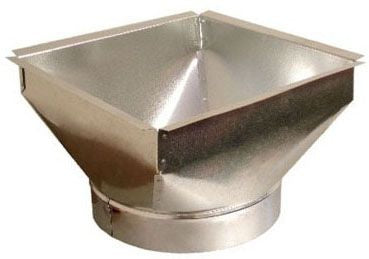

Snappy 82-061207 Funnel Floor Register Pan 6x12 7in

Product Description

The SNAPPY 82-061207 is a galvanized funnel floor register pan designed for residential and light commercial HVAC duct installations. This pan connects the trunk line or branch duct to a floor register opening, directing conditioned airflow upward through the floor. Constructed from galvanized steel, it resists corrosion in the crawlspace and subfloor environments where floor register pans are typically installed. The fitting size is 6 inches by 12 inches with a pan depth of 7 inches, making it a standard fit for common floor register openings in forced-air systems. HVAC installers and sheet metal contractors are the primary trades working with this component.

This funnel pan is used in forced-air heating and cooling systems where floor-mounted registers are specified. It is appropriate for new construction and replacement work in residential single-family homes, manufactured housing, and light commercial spaces. The pan transitions from the branch duct connection at the bottom to the floor register collar at the top, creating the funnel profile that maintains airflow velocity. Installations typically occur in crawlspace or basement environments beneath a subfloor deck.

Key Features

• Galvanized steel construction resists corrosion in subfloor and crawlspace environments
• 6 inch by 12 inch fitting size matches standard floor register openings
• 7 inch pan depth accommodates typical floor joist clearance requirements
• Funnel profile maintains airflow velocity from branch duct to register face
• Designed for straightforward field installation by sheet metal and HVAC technicians

Compatibility

Designed as an OEM-style replacement or new-installation component for forced-air HVAC systems requiring a 6 inch by 12 inch funnel floor register pan with a 7 inch depth.

Installation Notes

Installation is performed by licensed HVAC technicians or sheet metal contractors. Shut down the air handler or furnace and confirm the system is unpressurized before beginning duct work. Secure the pan to the branch duct and subfloor framing using sheet metal screws and seal all joints with UL-listed duct sealant or foil tape in accordance with local mechanical codes. Avoid compressing or restricting the funnel opening, as this reduces airflow and register performance.

Technical Specifications

• Fitting Size: 6 inches x 12 inches
• Pan Depth: 7 inches
• Material: Galvanized Steel
• Item Weight: 0.80 pounds

Standard Information

• Brand: SNAPPY
• Manufacturer Part Number: 82-061207
