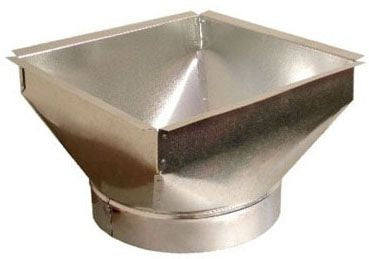

Snappy 82-061206 Galvanized Funnel Floor Register Pan

Product Description

The SNAPPY 82-061206 is a galvanized funnel floor register pan designed for residential and light commercial HVAC duct systems. This pan connects a rectangular floor opening to a round duct collar, transitioning airflow from the sub-floor cavity to the register above. The fitting size is 6 x 12 inches with a 6-inch funnel depth, and the galvanized steel construction resists corrosion in both conditioned and unconditioned spaces. HVAC sheet metal installers and duct fabricators use this type of pan during new construction and duct renovation work where floor registers are part of the supply air distribution layout.

This funnel pan is suited for floor register installations in residential forced-air systems, particularly where supply air is routed through floor joists or a crawl space. The 6 x 12 inch opening aligns with standard floor register sizing, and the 6-inch depth accommodates typical joist cavity dimensions. It is installed beneath the subfloor at the register cutout location and tied into the branch duct run leading from the supply plenum.

Key Features

• Galvanized steel construction resists corrosion in crawl space and sub-floor environments
• 6 x 12 inch rectangular opening matches standard floor register sizing
• 6-inch funnel depth fits typical floor joist cavity clearances
• Funnel design transitions rectangular register opening to round branch duct collar
• Lightweight at 0.80 pounds for easy single-tech handling during installation

Compatibility

Designed as an OEM-style replacement or new-construction component for residential and light commercial forced-air supply duct systems using standard 6 x 12 inch floor registers.

Installation Notes

Installation is performed by licensed HVAC technicians or sheet metal contractors. Shut down the air handler and lock out the system before cutting the subfloor opening or disconnecting any duct connections. Secure the pan to the subfloor framing using sheet metal screws and seal all seams with UL 181-rated duct tape or mastic to prevent conditioned air loss. Follow local mechanical codes and ACCA Manual D duct design guidelines for proper branch duct sizing and airflow balance.

Technical Specifications

• Fitting Size: 6 x 12 inches
• Pan Depth: 6 inches
• Material: Galvanized Steel
• Weight: 0.80 pounds

Standard Information

• Brand: SNAPPY
• Manufacturer Part Number: 82-061206
