Snappy 66-98 Sheet Metal Reducer 9x8 in 26 Gauge

Product Description

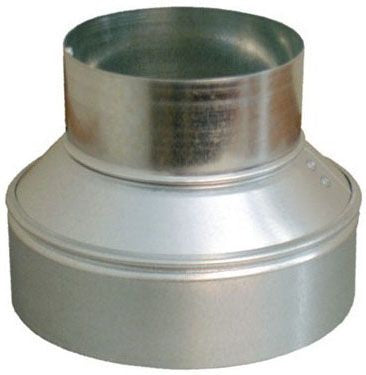

The SNAPPY 66-98 is a galvanized sheet metal reducer designed for duct transitions in residential and light commercial HVAC systems. It steps down a 9-inch duct opening to an 8-inch opening, allowing technicians to connect differing duct sizes within a supply or return air distribution system. Fabricated from 26-gauge galvanized steel, this uncrimped reducer ships ready for field fitting and connection. The uncrimped end allows the installer to crimp on-site to suit the direction of airflow or the requirements of the adjacent duct fitting. HVAC sheet metal installers and ductwork contractors are the primary trades working with this fitting.

This reducer is used in forced-air heating and cooling duct systems where a trunk or branch line requires a transition between a 9-inch and 8-inch round duct. Typical applications include residential furnace and air handler installations, light commercial split systems, and retrofit ductwork modifications where existing trunk sizing requires a step-down transition. The galvanized finish provides corrosion resistance suitable for interior duct applications in conditioned and unconditioned spaces.

Key Features

• Steps down from 9 inches to 8 inches for duct size transitions
• 26-gauge galvanized steel construction for durability and corrosion resistance
• Uncrimped end allows on-site crimping to match airflow direction
• Galvanized finish suitable for interior ductwork environments
• Lightweight at 0.80 pounds for easy single-technician handling

Compatibility

Designed as an OEM-style sheet metal fitting for use with standard 9-inch and 8-inch round galvanized duct systems in residential and light commercial forced-air HVAC installations.

Installation Notes

Installation is performed by qualified HVAC technicians or sheet metal ductwork installers. Shut down and de-energize the air handling system before making any duct connections. Crimp the uncrimped end on-site using sheet metal crimping pliers or a rotary crimper prior to insertion into the adjacent duct section. Seal all joints with UL 181-rated foil tape or mastic sealant in accordance with local mechanical codes and SMACNA duct construction standards.

Technical Specifications

• Fitting Size: 9 inches x 8 inches
• Gauge: 26 GA
• Material: Galvanized Steel
• End Type: Uncrimped
• Weight: 0.80 pounds

Standard Information

• Brand: SNAPPY
• Manufacturer Part Number: 66-98
