Snappy 5-206 Straight Stack Boot 5 in 2-1/4x10 in

Product Description

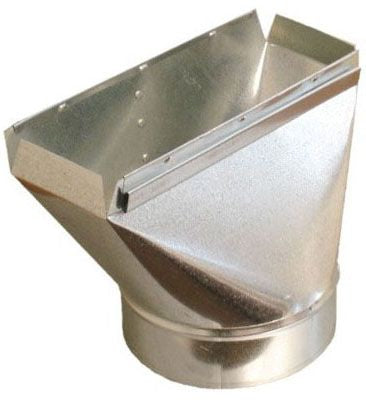

The SNAPPY 5-206 is a galvanized steel straight stack boot designed for residential and light commercial HVAC duct systems. This fitting connects a round 5-inch stack duct to a 2-1/4 x 10-inch rectangular floor or wall register opening. It is used in forced-air heating and cooling distribution runs where a straight transition from round pipe to a flat register boot is required. HVAC technicians and sheet metal installers work with this component during new construction and retrofit duct installations. The galvanized steel construction resists corrosion in standard air distribution environments.

This stack boot is suited for residential forced-air duct systems where floor or sidewall registers are served by a 5-inch round duct. The 2-1/4 x 10-inch face dimension is a common standard register size, making this fitting a direct match for typical residential register openings. It installs in-line with the vertical or horizontal duct run and sits beneath or behind the register grille. Sheet metal installers and HVAC service technicians handle this fitting during rough-in or register replacement work.

Key Features

• Galvanized steel construction for corrosion resistance in standard duct environments
• Straight configuration for direct in-line stack-to-register connections
• 5-inch round duct collar connects to standard round stack pipe
• 2-1/4 x 10-inch face fits common residential register opening dimensions
• Lightweight at 0.50 pounds for easy single-technician handling

Compatibility

Designed as an OEM-style replacement or new-construction fitting for residential forced-air duct systems using 5-inch round stack duct and 2-1/4 x 10-inch register openings.

Installation Notes

Installation is performed by licensed HVAC technicians or qualified sheet metal workers. Power down the air handler or furnace at the disconnect before working in the duct system. Secure the boot to the duct with sheet metal screws and seal all joints with listed duct sealant or mastic per local mechanical code requirements. Do not use this fitting in return-air plenums or applications outside its rated duct dimensions.

Technical Specifications

• Type: Straight Stack Boot
• Round Collar Diameter: 5 inches
• Fitting Face Size: 2-1/4 x 10 inches
• Material: Galvanized Steel
• Weight: 0.50 pounds

Standard Information

• Brand: SNAPPY
• Manufacturer Part Number: 5-206
