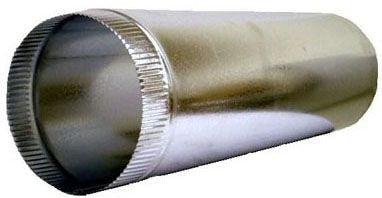

Snappy 1-12026 Galvanized Sheet Metal Pipe 12 in 2 Ft 26 Gauge

Product Description

The SNAPPY 1-12026 is a 26-gauge galvanized sheet metal round pipe section measuring 12 inches in diameter and 2 feet in length. Fabricated from galvanized steel, it provides corrosion resistance suited for ductwork installations in HVAC air distribution systems. At 6 pounds per length, the pipe offers a balance of structural rigidity and manageable handling on the job. HVAC technicians and sheet metal workers install this pipe as part of supply or return trunk and branch duct assemblies in residential and light commercial applications.

This galvanized round pipe is used in forced-air HVAC systems where larger-diameter main runs are required. The 12-inch diameter suits high-volume supply or return trunk lines. The 2-foot section length allows precise fitting in tight mechanical rooms, utility spaces, or wherever full-length sections would be impractical. Standard 26-gauge construction meets common specifications for residential and light commercial duct fabrication.

Key Features

• 12-inch diameter suits high-volume trunk line applications
• 2-foot length provides flexible placement in constrained spaces
• 26-gauge galvanized steel construction for corrosion resistance and rigidity
• Weighs 6 pounds per length for manageable single-person handling
• Compatible with standard round duct fittings, collars, and connectors

Compatibility

Designed as an OEM-style round duct section for use with standard 12-inch galvanized sheet metal duct fittings, elbows, tees, and takeoffs in residential and light commercial forced-air HVAC systems.

Installation Notes

Installation should be performed by a licensed HVAC technician or qualified sheet metal worker in accordance with SMACNA duct construction standards and applicable local mechanical codes. Power down the air handling unit and verify the system is depressurized before making duct connections. Seams and joints should be secured with sheet metal screws and sealed with UL 181-listed mastic or foil tape to meet energy code requirements. Avoid over-crimping slip connections, as deformation of the pipe end can compromise seal integrity.

Technical Specifications

• Pipe Diameter: 12 inches
• Pipe Length: 24 inches (2 feet)
• Gauge: 26 gauge
• Material: Galvanized Steel
• Weight: 6 pounds per length

Standard Information

• Brand: SNAPPY
• Manufacturer Part Number: 1-12026
