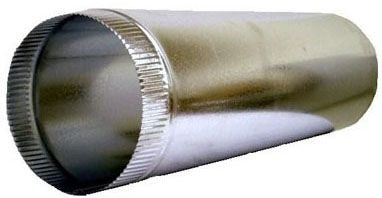

Snappy 1-10020 Galvanized Sheet Metal Pipe 10in X 2ft 30 Gauge

Product Description

The SNAPPY 1-10020 is a 30-gauge galvanized sheet metal pipe section used in residential and light commercial HVAC duct systems. Measuring 10 inches in diameter and 2 feet in length, this straight pipe section connects to round duct fittings and serves as a primary trunk or branch run component. The galvanized steel construction resists corrosion in typical duct environments. At 5 pounds per length, the pipe is manageable for single-technician installation in tight mechanical spaces. HVAC sheet metal installers and duct fabricators rely on this type of pipe section for standard low-pressure supply and return air applications.

This pipe section is suited for low-pressure forced-air duct systems in residential new construction, retrofit projects, and light commercial HVAC installations. It fits standard 10-inch round duct fittings including elbows, tees, reducers, and takeoffs. The 2-foot length is commonly used where shorter straight runs are needed between fittings or at equipment connections. Sheet metal contractors and HVAC technicians working on ducted split systems, furnaces, and air handlers will find this a standard stocked component.

Key Features

• 30-gauge galvanized steel construction for corrosion resistance in duct applications
• 10-inch diameter fits standard round duct fittings and collars
• 2-foot length provides a manageable straight section for branch and trunk runs
• Lightweight at 5 pounds per length for easy single-person handling
• Compatible with standard low-pressure HVAC forced-air distribution systems

Compatibility

Designed as an OEM-style component for standard 10-inch round duct systems in residential and light commercial forced-air HVAC applications.

Installation Notes

Installation is typically performed by licensed HVAC technicians or sheet metal contractors. Power down the air handling equipment before making duct connections. Secure pipe joints with sheet metal screws and seal all seams with listed duct sealant or foil tape in accordance with applicable mechanical codes such as the IMC or SMACNA duct construction standards. Do not use cloth-backed tape as a primary sealant.

Technical Specifications

• Pipe Diameter: 10 inches
• Pipe Length: 2 feet
• Gauge: 30 gauge
• Material: Galvanized Steel
• Item Weight: 5 pounds per length

Standard Information

• Brand: SNAPPY
• Manufacturer Part Number: 1-10020
