Snappy 1-08056 Galvanized Sheet Metal Pipe 8 in 5 Ft 26 Gauge

Product Description

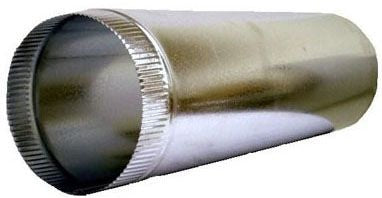

The SNAPPY 1-08056 is a round galvanized sheet metal pipe section used in low-pressure HVAC duct systems for supply and return air distribution. Constructed from 26-gauge galvanized steel, this pipe measures 8 inches in diameter and 5 feet in length, making it a standard straight run component in residential and light commercial ductwork. At 5 pounds per section, it is manageable for single-technician handling during rough-in or retrofit work. HVAC installers use this pipe type as the backbone of trunk-and-branch duct systems, connecting air handlers, furnaces, and packaged units to distribution networks.

This pipe section is suited for residential and light commercial forced-air HVAC installations where 8-inch round duct is specified. Typical applications include supply trunk lines, branch runs from plenum boxes, and inline extensions where straight sections are needed. The galvanized steel construction resists corrosion in unconditioned spaces such as attics, crawlspaces, and mechanical rooms. Sheet metal contractors and HVAC mechanics install this pipe as part of new construction duct systems or as a replacement section in existing round duct networks.

Key Features

• 26-gauge galvanized steel construction for corrosion resistance in unconditioned spaces
• 8-inch diameter fits standard round duct fittings, collars, and takeoffs
• 5-foot length reduces the number of joints needed in longer straight runs
• Galvanized finish compatible with standard duct sealant and foil tape applications
• Lightweight at 5 pounds per section for easier single-technician handling

Compatibility

Designed as a standard OEM-style round duct pipe section compatible with 8-inch galvanized duct fittings, collars, and connectors used in residential and light commercial forced-air HVAC systems.

Installation Notes

Installation of sheet metal duct pipe should be performed by a licensed HVAC or sheet metal contractor in accordance with SMACNA standards and local mechanical codes. Power down the air handler or furnace before connecting or modifying duct sections. Secure all joints with sheet metal screws and seal with UL 181-rated duct sealant or approved foil tape to meet code requirements. Use appropriate tin snips, seaming tools, and crimpers when cutting or joining sections on the job site.

Technical Specifications

• Pipe Diameter: 8 inches
• Pipe Length: 5 feet (60 inches)
• Gauge: 26 gauge
• Material: Galvanized steel
• Weight: 5 pounds

Standard Information

• Brand: SNAPPY
• Manufacturer Part Number: 1-08056
