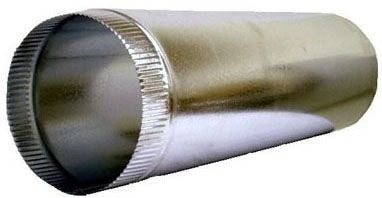

Snappy 1-08020 Galvanized Sheet Metal Pipe 8 in 2 Ft 30 Gauge

Product Description

The SNAPPY 1-08020 is a 30-gauge galvanized sheet metal pipe designed for use in low-pressure HVAC ductwork systems. Measuring 8 inches in diameter and 2 feet in length, this straight pipe section connects to standard round duct fittings and is used to extend or complete duct runs in residential and light commercial installations. The galvanized steel construction resists corrosion and holds up to normal supply and return air conditions. HVAC technicians and sheet metal contractors install this pipe during new construction, system retrofits, and duct repair work.

This pipe section is suited for forced-air heating and cooling systems where 8-inch round duct is specified. Typical applications include trunk-to-register runs, branch duct extensions, and air handler connections. At 2 feet in length and 4 pounds per length, it is manageable for single-person installation in tight mechanical rooms, crawlspaces, and attic spaces. Sheet metal contractors and HVAC installers use this pipe with standard drive cleats, slip joints, or drawbands to complete duct assemblies.

Key Features

• 30-gauge galvanized steel construction resists corrosion in standard air distribution environments
• 8-inch diameter fits standard round duct fittings, collars, and flex duct connectors
• 2-foot length provides a manageable straight section for branch runs and extensions
• Consistent gauge and diameter support leak-resistant connections when properly sealed
• Lightweight at 4 pounds per length for easier handling during overhead or confined-space installs

Compatibility

Designed as an OEM-style round duct pipe section compatible with standard 8-inch round galvanized duct systems and fittings used in residential and light commercial forced-air HVAC installations.

Installation Notes

Installation should be performed by a licensed HVAC technician or qualified sheet metal contractor in accordance with SMACNA duct construction standards and applicable local mechanical codes. Power down the air handling unit and close the system before connecting or modifying duct sections. Seal all joints with UL 181-listed mastic or metal foil tape to minimize air leakage. Secure pipe sections with appropriate fasteners, drive cleats, or drawbands per the duct system design.

Technical Specifications

• Pipe Diameter: 8 inches
• Pipe Length: 2 feet
• Gauge: 30 gauge
• Material: Galvanized Steel
• Weight: 4 pounds per length

Standard Information

• Brand: SNAPPY
• Manufacturer Part Number: 1-08020
