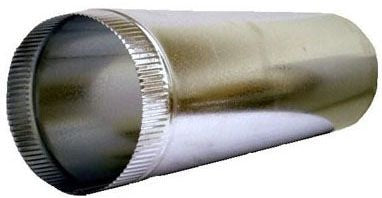

Snappy 1-07056 Galvanized Sheet Metal Pipe 7in 26 Gauge

Product Description

The SNAPPY 1-07056 is a 26-gauge galvanized sheet metal pipe used in residential and light commercial HVAC duct systems. Measuring 7 inches in diameter and 5 feet in length, this round pipe section serves as a straight run connector in forced-air supply and return trunk systems. The galvanized steel construction resists corrosion and holds up to the temperature swings common in duct installations. HVAC installers and sheet metal mechanics use this pipe to build out ductwork runs from the air handler or furnace to branch takeoffs and registers. At 4.5 pounds per section, it is manageable for single-person handling during overhead or crawlspace installation.

This pipe is suited for new construction and retrofit ductwork in residential forced-air heating and cooling systems. It is also appropriate for light commercial applications where round galvanized duct is specified. Typical install scenarios include trunk-to-branch transitions, extended supply runs, and direct connections to inline fittings, elbows, and takeoff collars. The 7-inch diameter matches common trunk branch sizing for mid-range residential air handlers.

Key Features

• 26-gauge galvanized steel construction for corrosion resistance and structural rigidity
• 7-inch diameter fits standard round duct fittings and collars
• 5-foot length reduces the number of joints needed on longer runs
• Lightweight at 4.5 pounds for easier handling during installation
• Compatible with standard snap-lock or crimped pipe assembly methods

Compatibility

Designed as an OEM-style replacement and standard component for residential and light commercial round galvanized duct systems using 7-inch diameter fittings and connectors.

Installation Notes

Installation should be performed by a qualified HVAC technician or licensed sheet metal mechanic. Power down the air handling unit before connecting ductwork to any supply or return plenum. Secure all joints with sheet metal screws and seal with UL 181-rated duct mastic or approved metal foil tape per local mechanical code requirements. Do not use standard cloth-backed duct tape as a primary sealant on sheet metal duct joints.

Technical Specifications

• Pipe Diameter: 7 inches
• Pipe Length: 5 feet
• Gauge: 26 GA
• Material: Galvanized Steel
• Item Weight: 4.5 pounds

Standard Information

• Brand: SNAPPY
• Manufacturer Part Number: 1-07056
