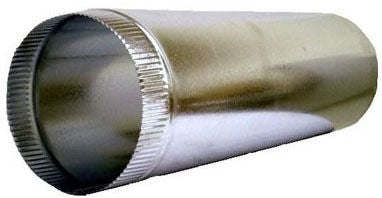

Snappy 1-07050 Galvanized Sheet Metal Pipe 7 in 5 Ft 30 Gauge

Product Description

The SNAPPY 1-07050 is a 30-gauge galvanized sheet metal pipe section used in residential and light commercial HVAC ductwork systems. Measuring 7 inches in diameter and 5 feet in length, this round pipe is a standard component in low-pressure forced-air distribution systems. The galvanized steel construction resists corrosion and holds up to the moisture and temperature variation common in duct systems. HVAC installers and sheet metal contractors use this pipe to fabricate or extend trunk-and-branch duct layouts. At 4.5 pounds per length, it is manageable for single-technician handling during installation.

This pipe section is suited for residential supply and return duct runs as well as light commercial forced-air applications. It is used wherever a 7-inch round duct is required, including main branch runs off a plenum or as an extended straight run between fittings. The 5-foot length reduces the number of joints needed on longer runs, which helps minimize air leakage. HVAC technicians typically pair this pipe with matching 7-inch elbows, reducers, and collars to complete the duct system layout.

Key Features

• 30-gauge galvanized steel construction for corrosion resistance in duct environments
• 7-inch diameter fits standard residential and light commercial duct configurations
• 5-foot length reduces joint count and potential leak points on straight runs
• 4.5-pound weight per section supports single-technician handling
• Compatible with standard 7-inch sheet metal fittings including elbows, collars, and reducers

Compatibility

Designed as a standard 7-inch round galvanized sheet metal duct pipe for use with compatible 7-inch HVAC duct fittings and accessories in forced-air distribution systems.

Installation Notes

Installation should be performed by a qualified HVAC technician or sheet metal contractor familiar with local mechanical codes. Power down the air handling unit before working on connected ductwork. Secure joints with sheet metal screws and seal with listed duct mastic or UL 181-rated tape in accordance with local mechanical code requirements. Avoid using standard cloth duct tape, which does not meet most current code standards for duct sealing.

Technical Specifications

• Pipe Diameter: 7 inches
• Pipe Length: 5 feet (60 inches)
• Gauge: 30 gauge
• Material: Galvanized Steel
• Item Weight: 4.5 pounds per length

Standard Information

• Brand: SNAPPY
• Manufacturer Part Number: 1-07050
