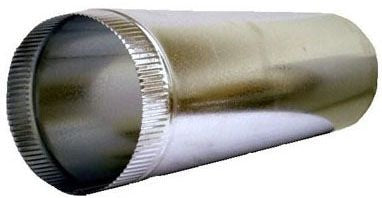

Snappy 1-07020 Galvanized Sheet Metal Pipe 7in 2ft 30 Gauge

Product Description

The SNAPPY 1-07020 is a 30-gauge galvanized sheet metal pipe section used in residential and light commercial HVAC duct systems. Measuring 7 inches in diameter and 2 feet in length, this pipe is a standard round duct component for supply and return air distribution. The galvanized steel construction resists corrosion and holds up to the airflow demands of forced-air heating and cooling systems. HVAC installers and sheet metal contractors use this pipe to build or extend trunk lines, branch runs, and equipment connections in new construction and retrofit applications.

This pipe section is suited for round duct installations in residential furnace and air handler systems, as well as light commercial forced-air applications. The 7-inch diameter fits common branch-line and main-trunk configurations. At 2 feet in length, it works as a straight run segment or a connector between duct fittings, transitions, and registers. Sheet metal contractors and HVAC technicians install this pipe as part of a complete galvanized duct system.

Key Features

• 30-gauge galvanized steel construction for corrosion resistance and durability
• 7-inch diameter fits standard round duct fittings and collars
• 2-foot length provides a manageable straight-run segment
• Compatible with snap-lock or slip-joint duct assembly methods typical of galvanized pipe systems
• Weighs 3.5 pounds per length, easy to handle during installation

Compatibility

Designed as a standard round galvanized duct pipe section for use with 7-inch diameter duct fittings, elbows, tees, and collars in forced-air HVAC systems.

Installation Notes

Installation should be performed by a licensed HVAC technician or sheet metal contractor in accordance with local mechanical codes and SMACNA duct construction standards. Power down the air handling equipment before making connections to existing ductwork. Secure all joints with sheet metal screws and seal with listed duct sealant or UL 181-rated tape to meet code requirements. Wear cut-resistant gloves when handling sheet metal edges.

Technical Specifications

• Pipe Diameter: 7 inches
• Pipe Length: 2 feet
• Gauge: 30 gauge
• Material: Galvanized Steel
• Item Weight: 3.5 pounds per length

Standard Information

• Brand: SNAPPY
• Manufacturer Part Number: 1-07020
