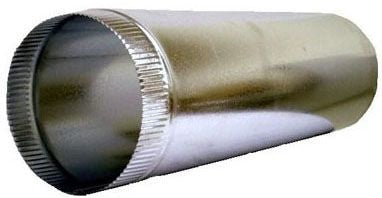

Snappy 1-05020 Galvanized Sheet Metal Pipe 5 X 24 in

Product Description

The SNAPPY 1-05020 is a 30-gauge galvanized sheet metal round pipe section used in residential and light commercial HVAC duct systems. Measuring 5 inches in diameter and 24 inches in length, this straight pipe section connects to standard duct fittings for supply and return air distribution. The galvanized steel construction resists corrosion and holds up in unconditioned spaces such as attics, crawlspaces, and mechanical rooms. HVAC installers and sheet metal contractors use this pipe for trunk-to-branch connections and short duct runs where a rigid, factory-formed section is preferred over flex duct.

This pipe section is suited for forced-air heating and cooling systems in residential new construction and retrofit installations. It fits into standard round duct systems alongside snap-lock fittings, elbows, and reducers. The 5-inch diameter is a common branch duct size for individual room supplies. Installation is handled by licensed HVAC technicians or sheet metal workers following SMACNA duct construction standards.

Key Features

• 30-gauge galvanized steel construction for corrosion resistance in HVAC applications
• 5-inch diameter fits standard round duct fittings and connectors
• 24-inch length provides a full straight section for branch duct runs
• Factory-formed rigid pipe for consistent sizing and reliable sealing
• Compatible with standard snap-lock and drive-cleat duct assembly methods

Compatibility

Designed as an OEM-style replacement and standard component for residential and light commercial forced-air HVAC round duct systems using 5-inch diameter round pipe sections.

Installation Notes

Installation should be performed by a qualified HVAC technician or licensed sheet metal contractor. Power down the air handling unit at the disconnect before making duct connections. Seal all joints with UL 181-listed mastic or foil tape per local mechanical code requirements. Secure pipe sections with sheet metal screws and support with hangers at intervals specified by SMACNA guidelines.

Technical Specifications

• Pipe Diameter: 5 inches
• Pipe Length: 24 inches
• Gauge: 30 gauge
• Material: Galvanized Steel
• Item Weight: 2.5 pounds

Standard Information

• Brand: SNAPPY
• Manufacturer Part Number: 1-05020
