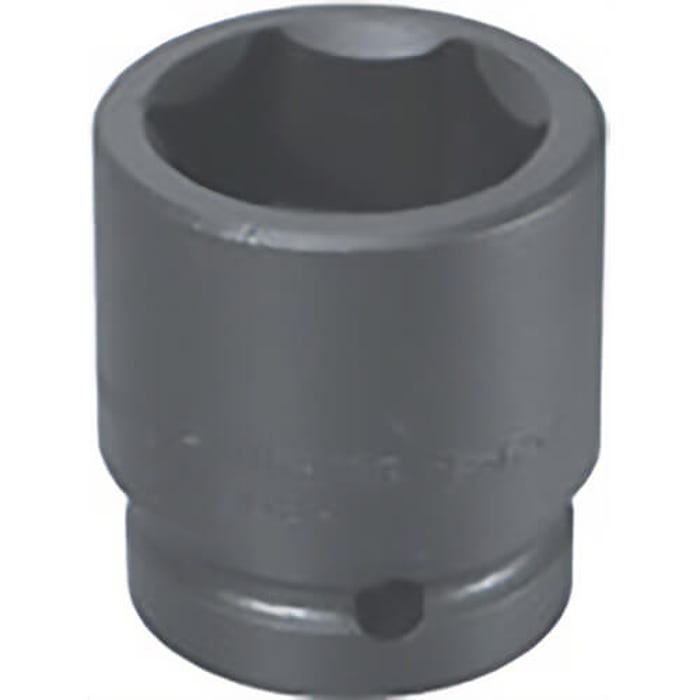

Snap-On JHW7-634 1 inches Drive Shallow Impact Socket 6-Point 1-1/16 inches

Product Description

The SNAP-ON JHW7-634 1" Drive Shallow Impact Socket features SUPERTORQUE lobular openings for enhanced turning power without fastener deformation. Designed for maximum engagement on 6-point fasteners, this socket is suitable for use with pneumatic and electric impact wrenches. It is specially heat treated for impact use to provide long life, safety, and durability.

• SUPERTORQUE lobular openings for greater turning power
• Designed for maximum engagement on 6 point fasteners
• Suitable for use with pneumatic and electric impact wrenches

Product Highlights

The JHW7-634 impact socket is heat treated for durability and long life.

Product Information

Standard Information

• Brand: SNAP-ON
• Manufacturer Part Number: JHW7-634
• Country of Origin: USA

Technical Specifications

• Drive Size (in): 1
• Size (in): 1-1/16
• No of Points: 6
• Finish: Black
• OAL - a (in): 2-1/4
• Drive End Diameter - B (in): 2-1/8
• Working End Diameter - C (in): 1-3/4
• Broach Depth - D (in): 11/16
• Bolt Clearance Depth - E (in): 1-1/16
• Bolt Clearance Diameter (in): 3/4
• Nose Length - F (in): 7/8
• Use O-Ring/Pin Number: 7-1B/7-2D
• Use Ret Ring Number: 7-2X
• Length (in): 2.24
• Scale: SAE
• Type: Shallow
