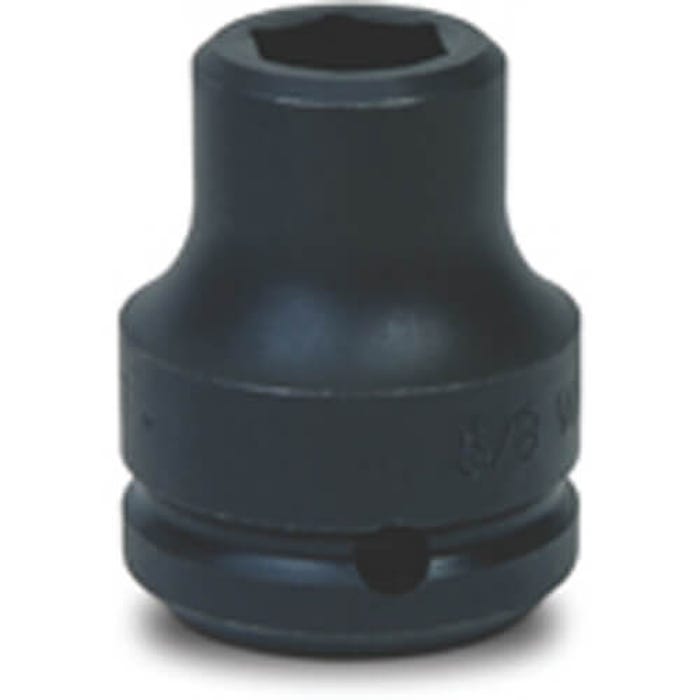

Snap-On JHW6-652 Williams 3/4 in Impact 1-5/8 in Hex Socket

Product Description

The SNAP-ON JHW6-652 Williams® 1-5/8 in Standard Shallow Impact Socket is a 6 Point SAE socket. Designed for maximum engagement on 6 point fasteners, it is suitable for use with pneumatic and electric impact wrenches. It has been specially heat treated for impact use to provide long life, safety, and durability.

• SSUPERTORQUE lobular openings for greater turning power without deforming the fastener
• Drive Size: 3/4 in
• Black Industrial Finish

Product Highlights

The SNAP-ON JHW6-652 impact socket is designed for use with 6 point fasteners and impact wrenches.

Product Information

Standard Information

• Brand: SNAP-ON
• Manufacturer Part Number: JHW6-652
• Country of Origin: USA

Technical Specifications

• Mfg Part Number: 6-652
• Bolt Clearance Diameter (in): 1-5/8
• OAL - a (in): 2-3/8
• Drive End Diameter - B (in): 1-3/4
• Working End Diameter - C (in): 2-13/32
• Broach Depth - D (in): 1
• Bolt Clearance Depth - E (in): 1-13/32
• Nose Length - F (in): 1-11/16
• Drive Size (in): 3/4
• No of Points: 6
• Finish: Black Industrial
• Size (in): 1-5/8
• Use O-Ring/Pin Number: 6-1A/6-2B
• Use Ret Ring Number: 6-1X
• Manufacturer Part Number: JHW6-652
• Scale: SAE
• Type: Shallow
• OAL (Inches): 2 3/8
• Drive End Diameter (Inches): 1 3/4
• Working End Diameter (Inches): 2 13/32
• Broach Depth (Inches): 1
• Bolt Clearance Depth (Inches): 1 13/32
• Nose Length (Inches): 1 11/16
