Product Description

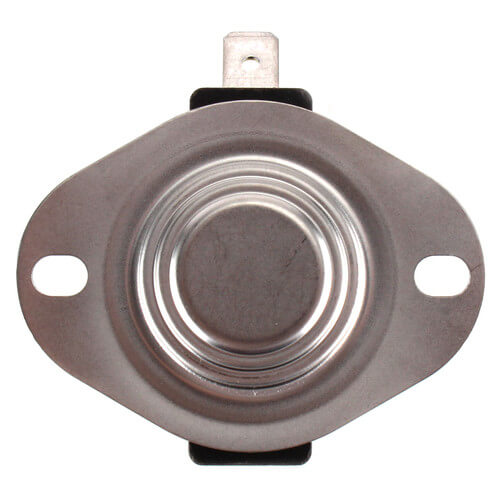

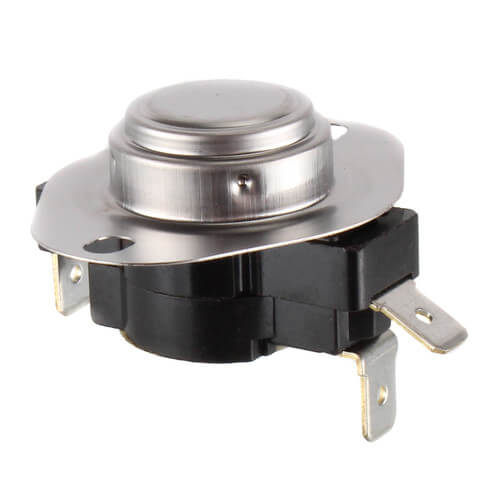

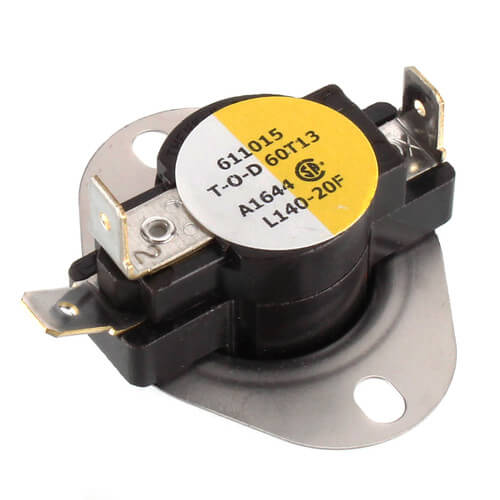

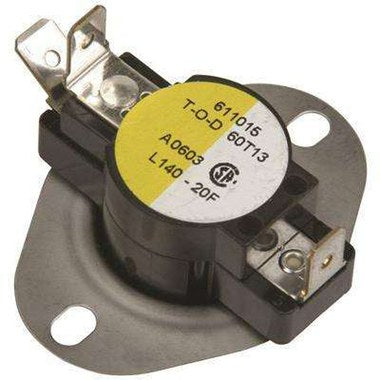

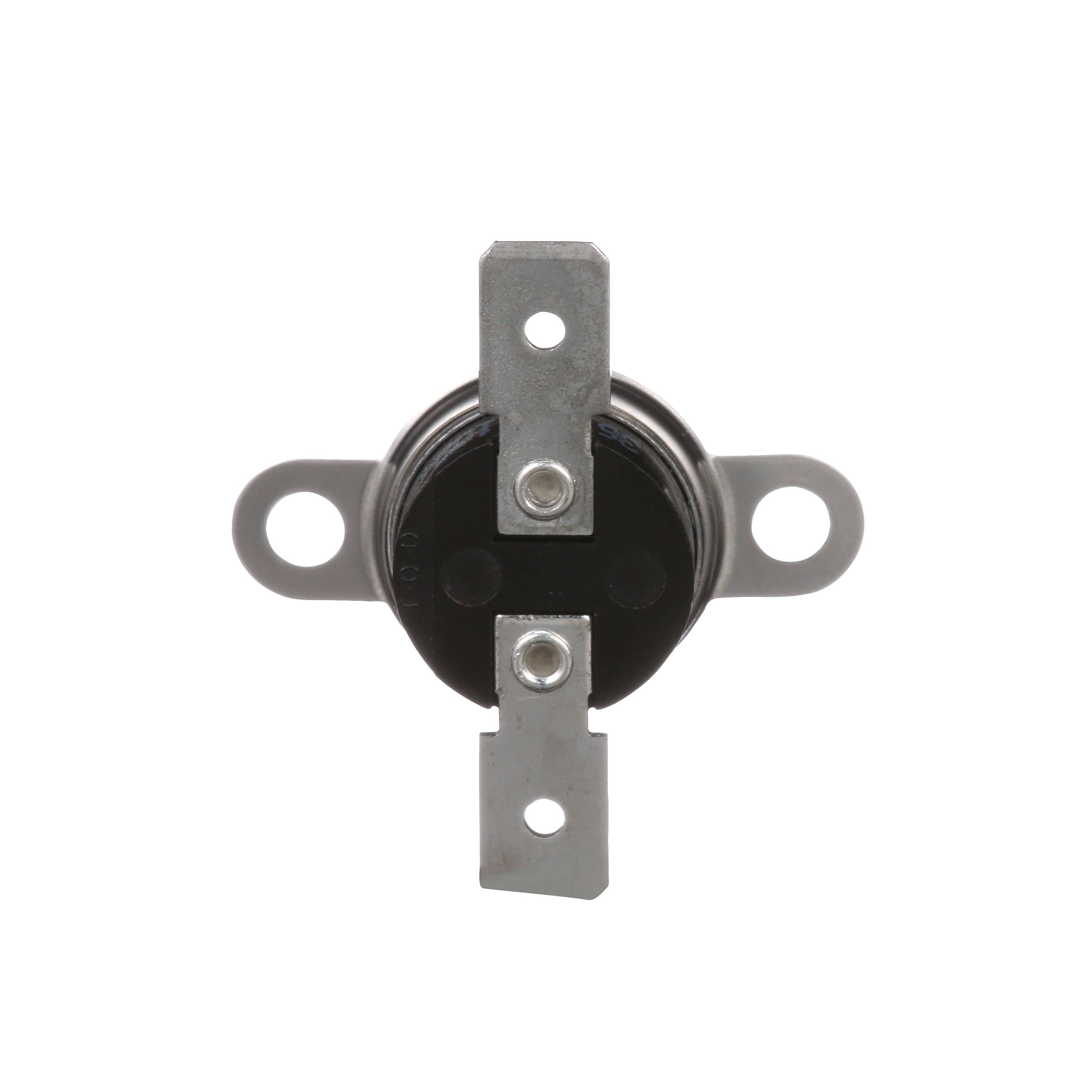

The WHITE-RODGERS 3L03-140 limit control thermostat is a snap disc type designed for regulation of fan, blower, and high limit safety control in appliance and HVAC applications. It features SPDT switching and a flanged airstream mounting type. The thermostat has a 3/4 inch snap disc size and 1/4 inch quick-connect terminals.
- Loose Ring, Stainless Steel Mounting Brackets
- 1/4 Inch Quick-Connect Terminal
- Aluminum Disc Cup
Product Highlights
This thermostat is suitable for use in appliance and HVAC systems requiring precise temperature control for safety and operational efficiency.
Product Information
Standard Information
-
Brand: WHITE-RODGERS
-
Manufacturer Part Number: 3L03-140
-
Country of Origin: United States
Technical Specifications
-
Type: Snap Disc
-
Switch Type: SPDT, Open on Rise
-
Power Rating: 125 Volt Amp at 120/240/277 Volt AC (Pilot Duty)
-
Current Rating: 10 Amp at 120 Volt AC/5 Amp at 240 Volt AC (Full Load), 25 Amp at 120/240 Volt AC/21.6 Amp at 277 Volt AC (Resistive)
-
Voltage Rating: 120/240 Volt AC (Full Load), 120/240/277 Volt AC (Resistive/Pilot Duty)
-
Temperature Rating: 140 Deg F (Cut-In)/120 Deg F (Cut-Out) Terminal 1 and 3, 190 Deg F (Cut-In)/170 Deg F (Cut-Off) Terminal 1 and 2
-
Snap Disc Size: 3/4 Inch
-
Terminal Type: 1/4 Inch Quick-Connect
-
Mounting Type: Flanged Airstream
-
Material: Aluminum (Disc Cup), Stainless Steel (Mounting Bracket)
-
Differential Temperature: 20 Deg F
-
Manufacturer Part Number: 3L03-140
-
Manufacturer Part Number Additional: 03L03-140S1
-
Approval: UL, CSA, VDE
-
Cut-In Temperature (Terminal 1 and 3): 140 deg F
-
Cut-Out Temperature (Terminal 1 and 3): 120 deg F
-
Cut-In Temperature (Terminal 1 and 2): 190 deg F
-
Cut-Out Temperature (Terminal 1 and 2): 170 deg F
-
Application: Limit Control
-
Motor Full Load: 10A @ 120VAC
-
Pilot Duty Rating: 125 VA @ 120 Vac
-
Switch Action: SPDT
-
Features: Fixed Temperature
-
Country of Origin (subject to change): United States
