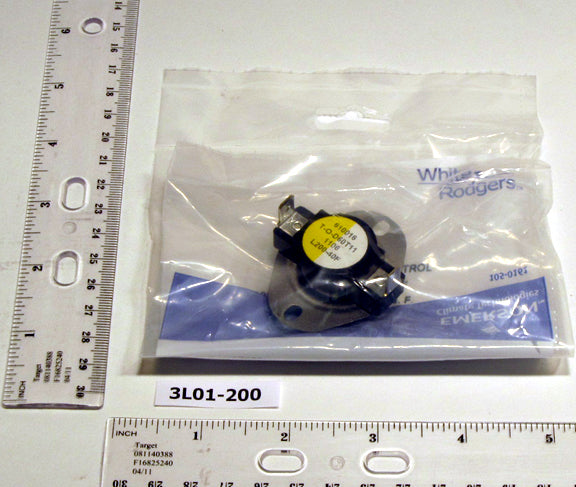

White-Rodgers 3L01-200 Snap Disc Limit 160/200F Replaces 3L01-201

Product Description

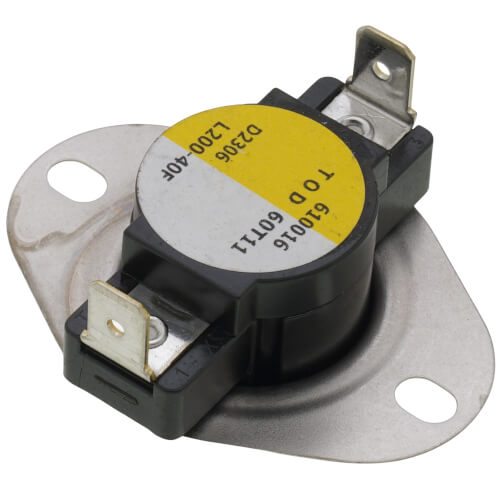

The WHITE-RODGERS 3L01-200 is a snap disc limit control with a 160/200F temperature rating. Designed for appliance and HVAC applications, this automatic reset thermostat is suitable for fans, blowers, or high limit cut-out. It features quick connect terminals and stainless steel mounting brackets for easy installation.

• Automatic reset snap disc limit thermostat

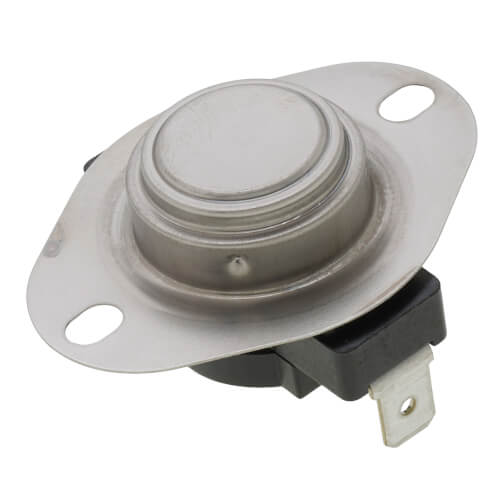

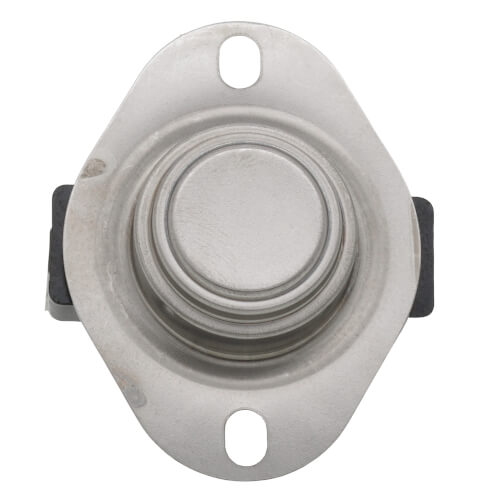

• Features loose ring, stainless steel mounting brackets

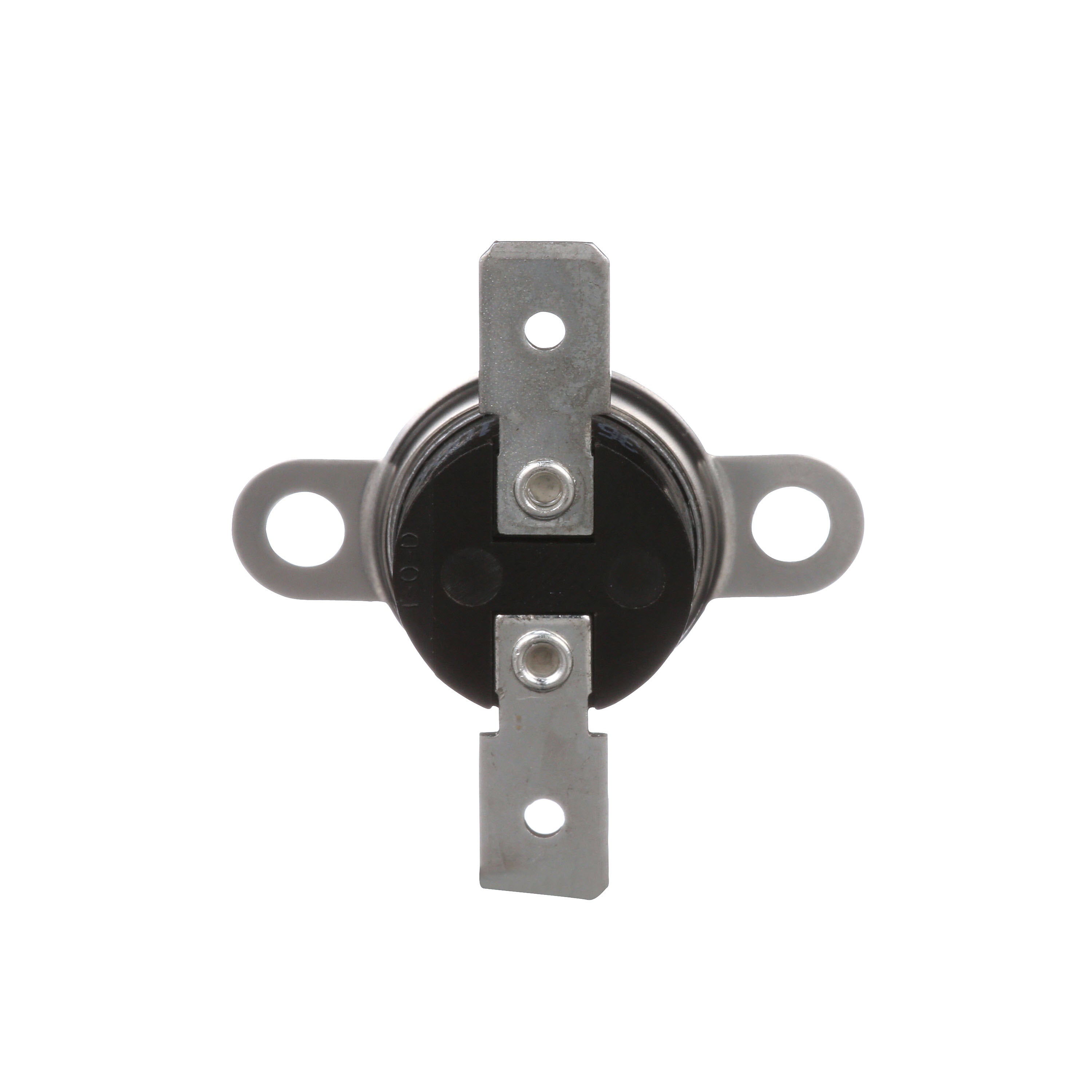

• Equipped with 1/4 in. quick connect terminals

Product Highlights

This snap disc limit control is designed for regulation of fan, blower/high limit safety control for appliance and HVAC applications.

Product Information

Standard Information

• Brand: WHITE-RODGERS
• Manufacturer Part Number: 3L01-200
• Country of Origin: United States

Technical Specifications

• Brand: WHITE-RODGERS
• MPN: 3L01-200
• Temperature Rating: 160 Deg F (Cut-In), 200 Deg F (Cut-Out)
• Switch Configuration: SPST, Open on Rise
• Voltage Rating: 120/240/277 Volt AC
• Current Rating: 10 Amp at 120 Volt AC, 5 Amp at 240 Volt AC (Full Load), 25 Amp at 120/240 Volt AC, 21.6 Amp at 277 Volt AC (Resistive)
• Power Rating: 125 Volt Amp at 120/240/277 Volt AC (Pilot Duty)
• Size: 3/4 Inch Disc
• Type: Automatic Reset
• Series: 3L01
• Dimensions: 1.23 in L x 1.32 in W x 0.37 in H
• Contact Form: SPST
• Differential: 40 deg F
• Mounting Type: Airstream
• Switch Action: Open on Rise
• Inductive Rating: 5.8/34.8 A at 120 VAC, 2.9/17.4 A at 240 VAC
• Pilot Duty Rating: 125 VA
• Electrical Connections: Quick-Connect
• Application: Fan Control
• Switch Type: SPST
• Reset Type: Automatic
• Connection Type: 1/4" Spade Connect
• Cut-In Temperature: 160°F
• Cut-Out Temperature: 200°F
