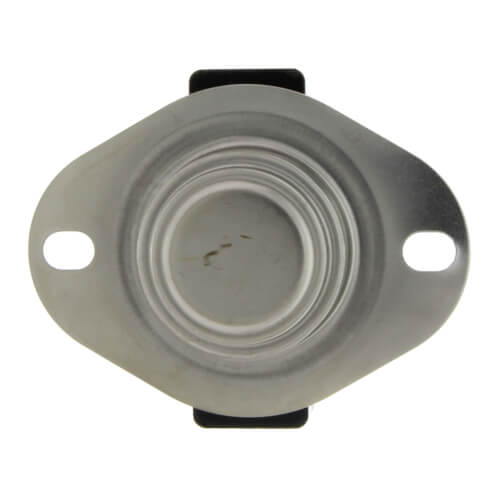

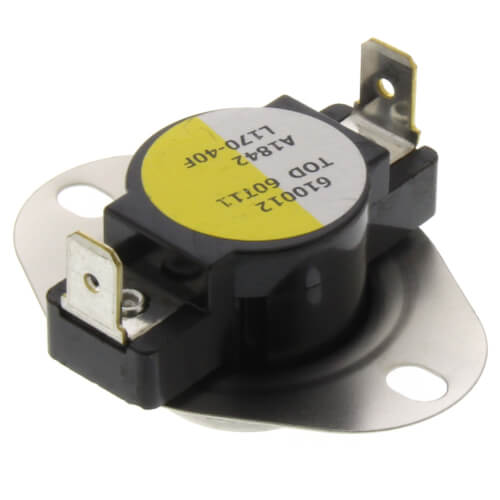

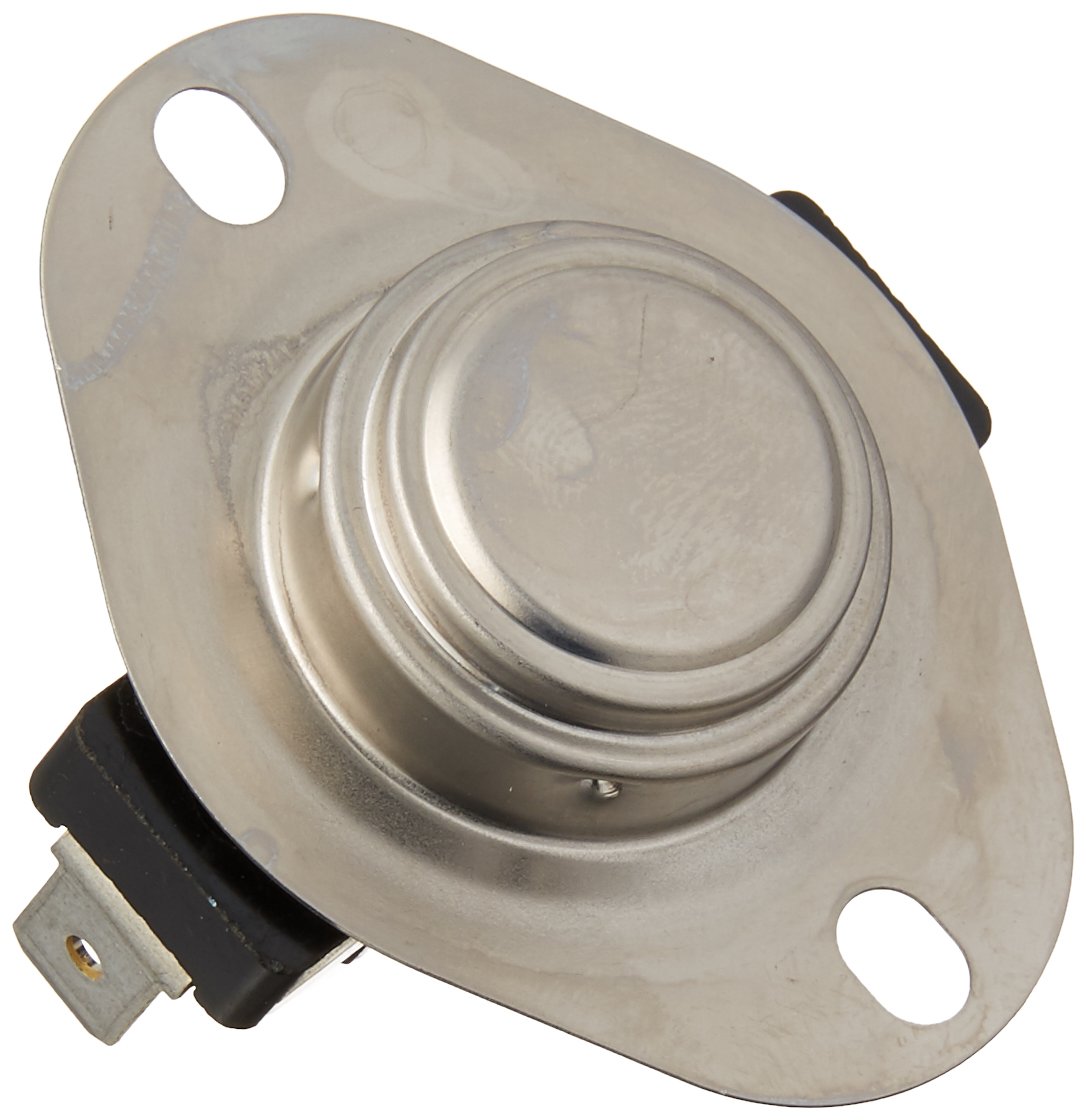

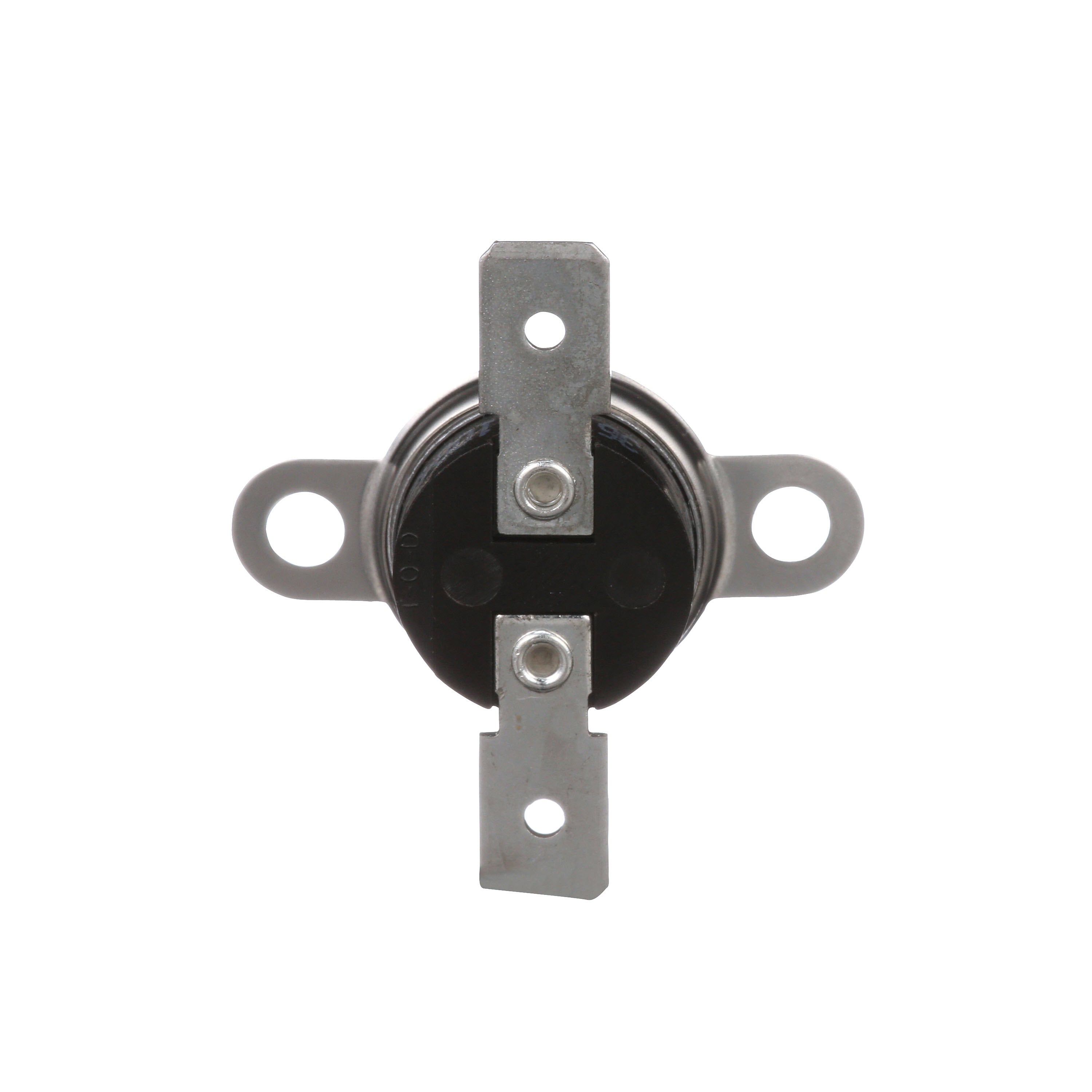

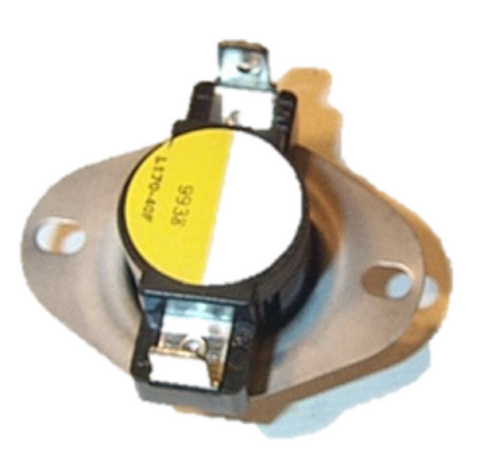

White-Rodgers 3L01-170 Snap Disc Limit Control Thermostat 130 to 170 Deg F

Product Description

The WHITE-RODGERS 3L01-170 is a snap disc limit control thermostat designed for regulation of fan, blower, and high limit safety control. This snap disc thermostat has a voltage rating of 120/240/277 Volt AC and a temperature rating of 130 to 170 Deg F. It is suitable for various HVAC/R and fan applications.

• SPDT switch type, open on rise
• Full load current rating: 10 Amp at 120 Volt AC, 5 Amp at 240 Volt AC
• Pilot duty power rating: 125 Volt Amp at 120/240/277 Volt AC

Product Highlights

The WHITE-RODGERS snap disc limit control thermostat is UL, CSA, and VDE approved. It features a snap disc type and is designed for quick on-job replacement.

Product Information

Standard Information

• Brand: WHITE-RODGERS
• Manufacturer Part Number: 3L01-170
• Country of Origin: United States

Technical Specifications

• Application: Regulation of Fan, Blower/High Limit Safety Control
• Approval: UL, CSA, VDE
• Catalog Number: 3L01-170
• Customer UPC: 78671000190
• Category: HVAC/R & Fans
• Current Rating: 10 Amp at 120 Volt AC, 5 Amp at 240 Volt AC (Full Load), 25 Amp at 120/240 Volt AC, 21.6 Amp at 277 Volt AC (Resistive)
• Power Rating: 125 Volt Amp at 120/240/277 Volt AC (Pilot Duty)
• Switch Type: SPDT, Open on Rise
• Temperature Rating: 130 to 170 Deg F
• Type: Snap Disc
• UNSPSC Code: 41112209
• UPC: 786710001901
• Voltage Rating: 120/240/277 Volt AC
• Features/Benefits: Last Three Numbers Indicate Cut-In Temperatures on Fan Controls and Cut-Out Temperatures on Limits
• Manufacturer Name: White-Rodgers
• Manufacturer Part Number: 3L01-170
• Manufacturer Part Number Additional: 03L01-170S1
• Series: 3L01 Series
• Dimensions: 1.23 in L x 1.32 in W x 0.37 in H
• Differential: 40 deg F
• Mounting Type: Airstream
• Switch Action: Open on Rise
• Inductive Rating: 5.8/34.8 A at 120 VAC, 2.9/17.4 A at 240 VAC
• Resistive Rating: 25 A at 120/240 VAC
• Pilot Duty Rating: 125 VA
• Electrical Connections: Quick-Connect
• Cut-In Temperature: 130°F
• Cut-Out Temperature: 170°F
• Function: Open On Rise
• Body Style: Disc
• Close Temperature: 130 F
• Sensing Mode: Open on rise
• Part Number: 3L01-170
• Opens at: 170 Degree F
• Closes at: 130 Degree F
• Terminal Connections: Two 1/4" Terminal Connections
• Item [Specifications]: Limit Control, 130F CutIn, 170F CutOut
• Country of Origin (subject to change): United States
