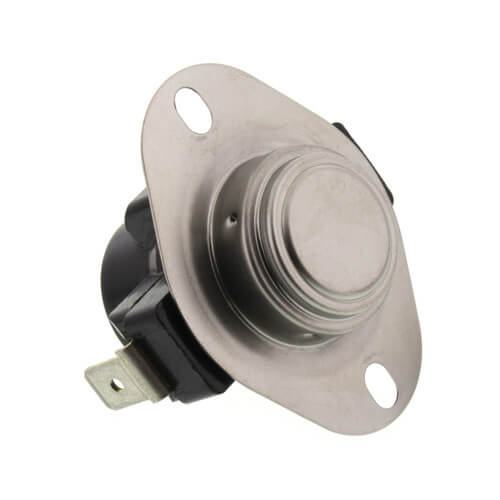

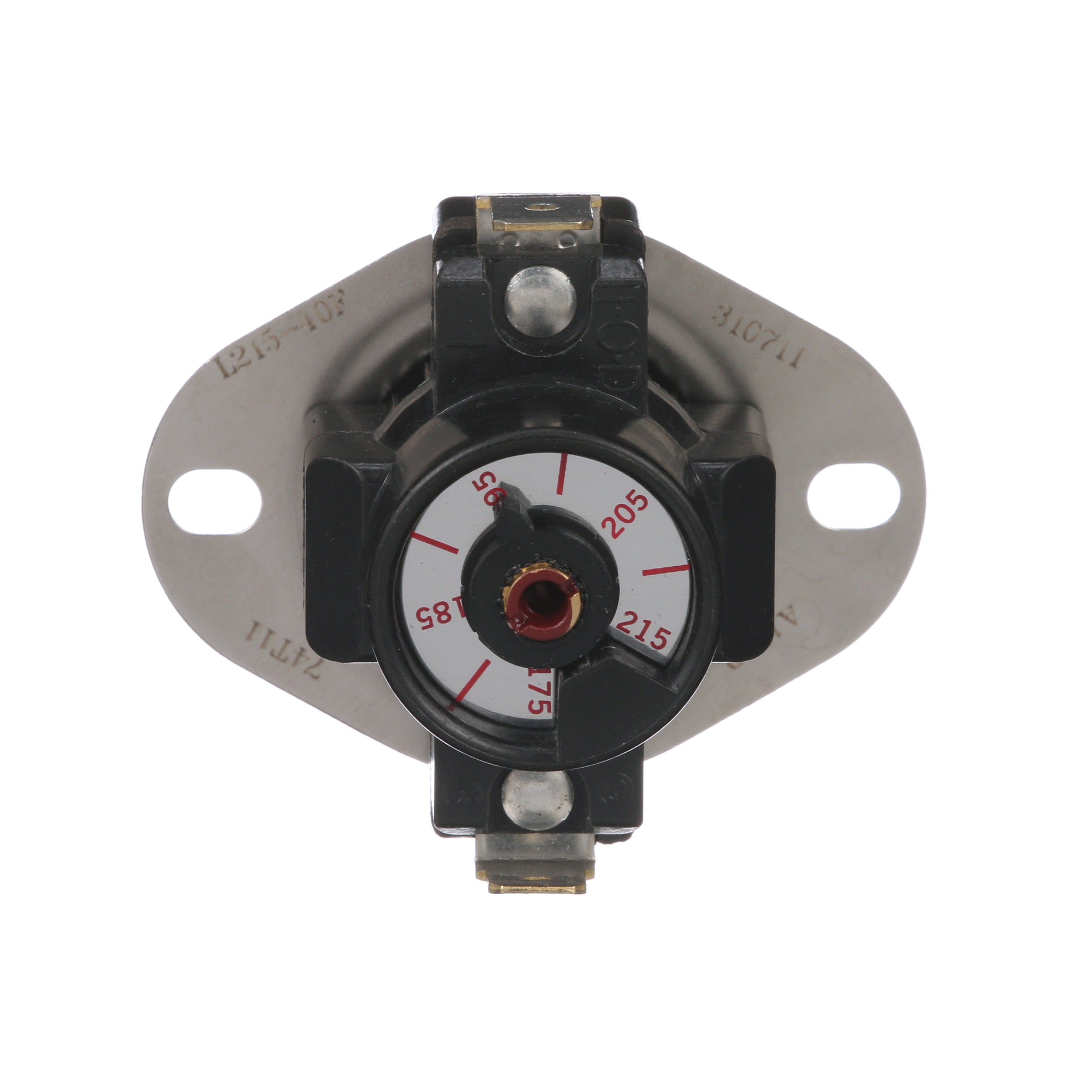

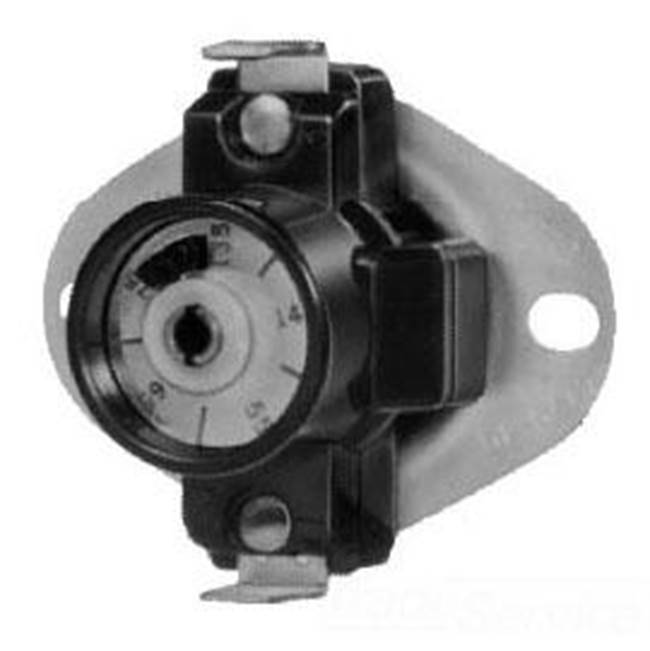

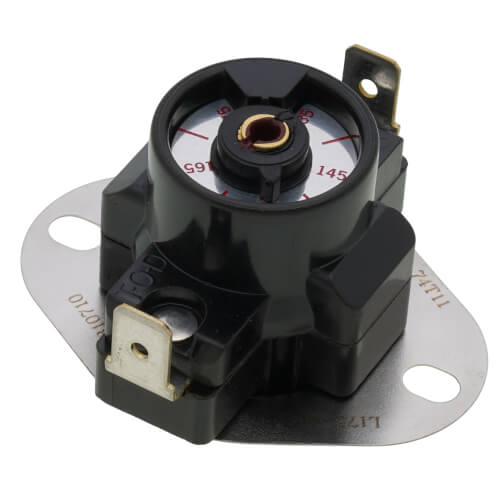

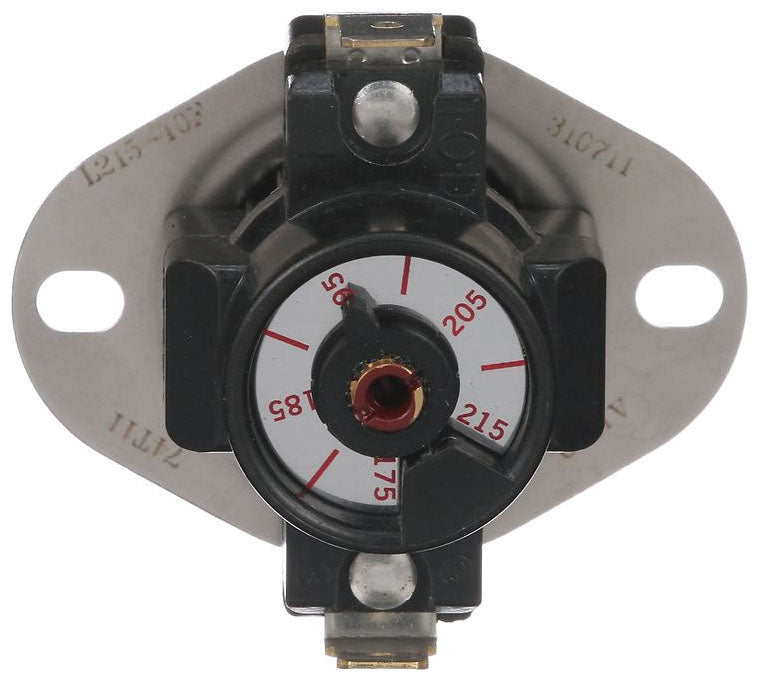

White-Rodgers 3L05-1 Snap Disc Fan/Limit Control Thermostat 135 to 175 Deg F Replaces 3L05-4

Product Description

The WHITE-RODGERS 3L05-1 is a snap disc fan/limit control thermostat with adjustable snap disc and auto reset functionality. This thermostat is rated for 120/240 Volt AC and features a SPST switch that opens on rise. It has a temperature rating of 135 to 175 Deg F and includes a thermostat and tab to screw terminal. It is suitable for various temperature applications.

• Adjustable snap disc with auto reset
• Rated for 120/240 Volt AC
• SPST switch type, open on rise

Product Highlights

The WHITE-RODGERS snap disc fan/limit control thermostat replaces most fixed disc thermostats and reduces inventory.

Product Information

Standard Information

• Brand: WHITE-RODGERS
• Manufacturer Part Number: 3L05-1
• Country of Origin: United States

Technical Specifications

• Type: Adjustable Snap Disc, Auto Reset
• Voltage Rating: 120/240 Volt AC
• Current Rating: 14 Amp at 120 Volt AC/10 Amp at 240 Volt AC (Full Load), 25 Amp at 120/240 Volt AC (Resistive)
• Power Rating: 125 Volt Amp at 120/240 Volt AC (Pilot Duty)
• Switch Type: SPST, Open on Rise
• Temperature Rating: +175 deg F Cut-Out, +135 deg F Cut-In
• Terminal Type: 1/4 Inch Quick-Connect
• Differential Temperature Rating: 20 Deg F
• Manufacturer Name: White-Rodgers
• Manufacturer Part Number: 3L05-1
• Series/Model: 3L05
• Brand: White-Rodgers
• MPN: 3L05-1
• Set Point Range: 135° to 175°F
• Resistive Rating: 25 amp
• Switch Configuration: SPST, Open-On Rise
• Application: Limit Control
• Temperature Range (F): 135°F to 175°F
• Switch Action: Open on Rise
• Pilot Duty Rating: 125 VA @ 240 Vac 125 VA @ 120 Vac
• Connection Type: Quick-Connect
• Features: Fixed Temperature Contact
• Model: 3L05-1
• Collection: Snap Disc Fan and Limit Controls
• Adjustable: 135 to 175 Open on Rise
