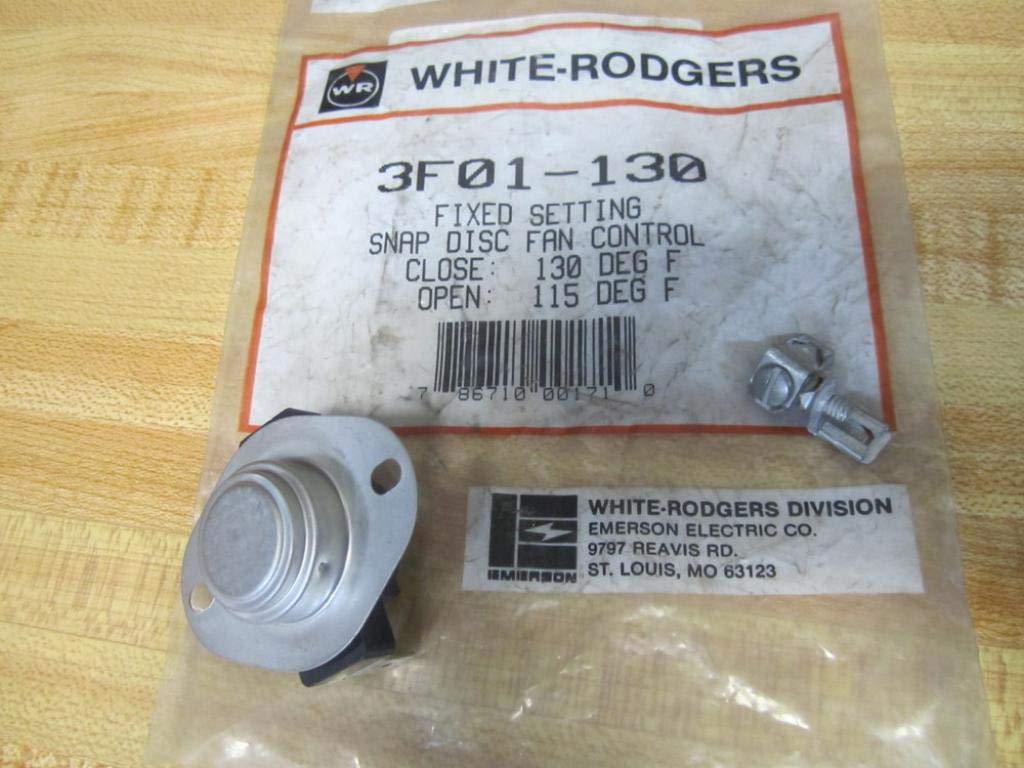

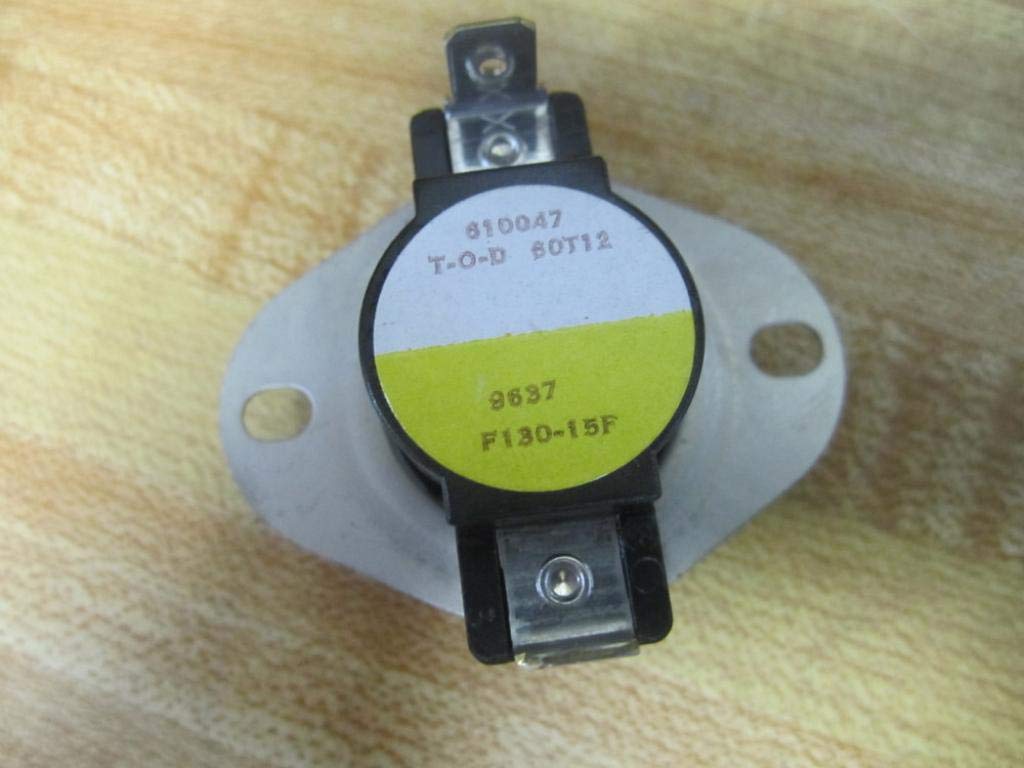

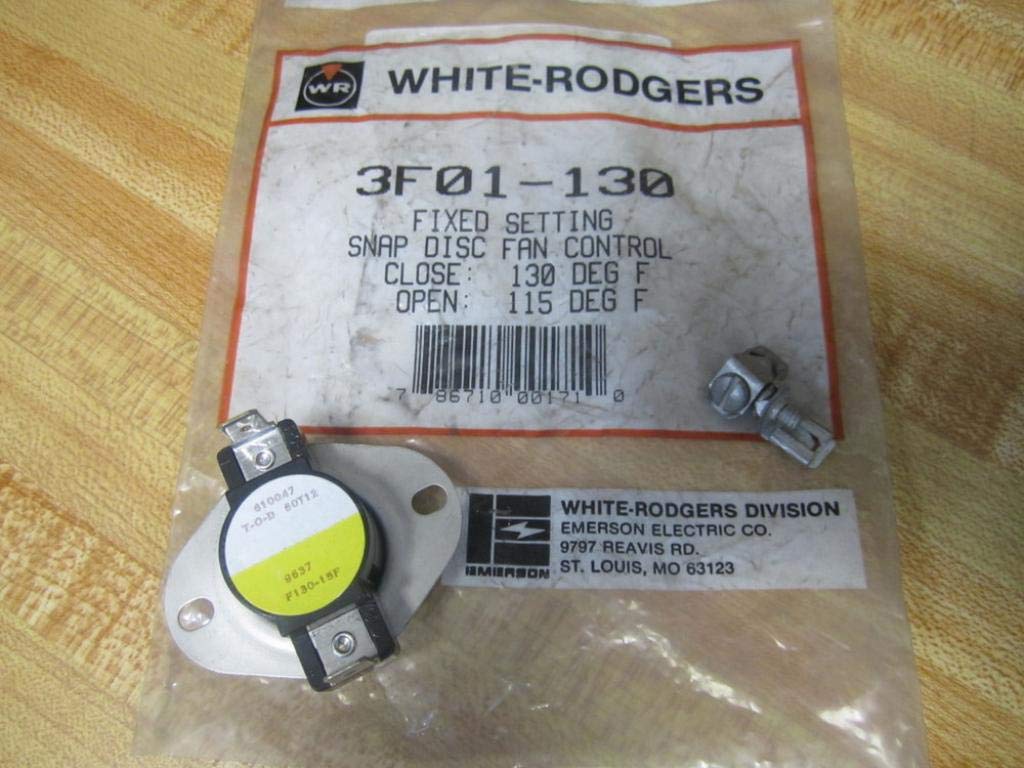

White-Rodgers 3F01-130 Snap Disc Fan Control 130F Cut-In / 115F Cut-Out

Product Description

The White-Rodgers 3F01-130 Snap Disc Fan Control is designed for reliable air movement regulation in HVAC systems. Its automatic reset feature and close on rise switch action ensure precise temperature control for optimal airflow.

• Controls fan operation at 130 degrees Fahrenheit cut-in and 115 degrees Fahrenheit cut-out temperature.
• Compact design for easy installation in space-constrained areas.
• Compatible with many fan motors for versatile use.

Product Highlights

This snap disc fan control helps improve equipment performance, indoor air quality, and overall system efficiency. The White-Rodgers 3F01-130 operates at a fixed temperature setting, ensuring consistent and accurate performance for HVAC professionals.

Product Information

Standard Information

• Brand: White-Rodgers
• MPN: 3F01-130
• Manufacturer: Emerson Electric

Technical Specifications

• Type: Automatic Reset
• Series: 3F01
• Dimensions: 1.23 in L x 1.32 in W x 0.37 in H
• Contact Form: SPST
• Differential: 15 deg F
• Mounting Type: Airstream
• Switch Action: Close on Rise
• Inductive Rating: 5.8/34.8 A at 120 VAC, 2.9/17.4 A at 240 VAC
• Resistive Rating: 25 A at 120/240 VAC
• Pilot Duty Rating: 125 VA
• Temperature Rating: 130 deg F Cut-In / 115 deg F Cut-Out
• Electrical Connections: Quick-Connect
