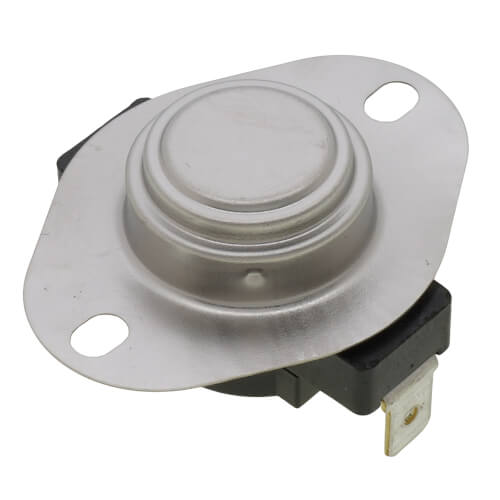

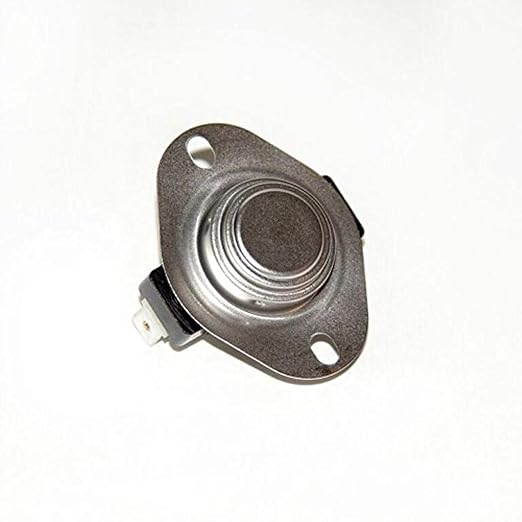

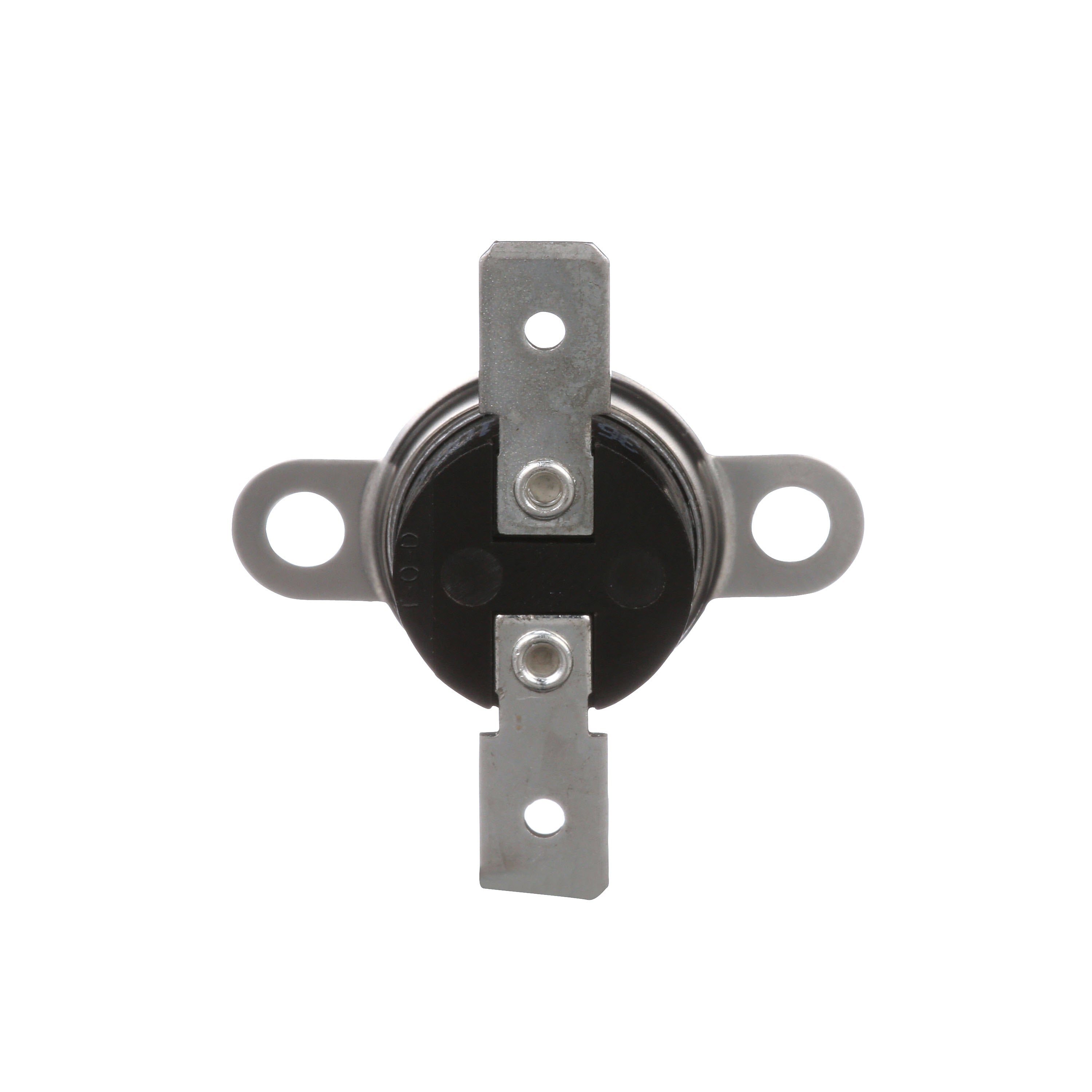

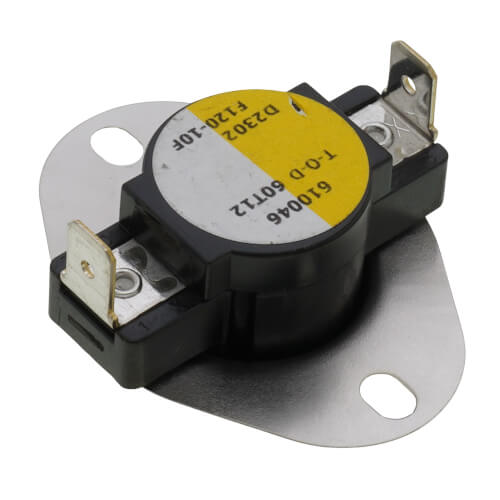

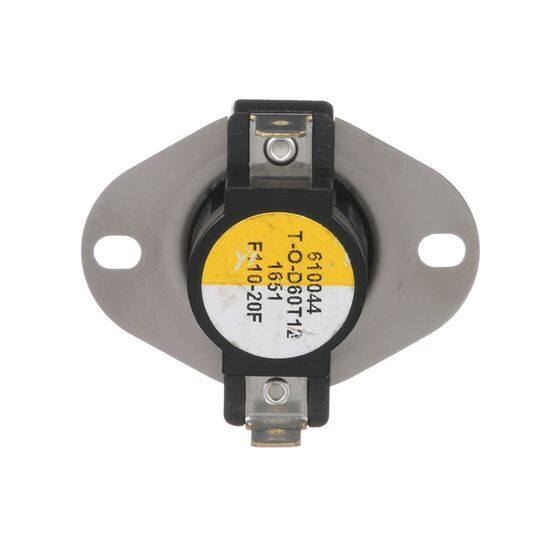

White-Rodgers 3F01-120 Fixed Snap Disc Fan Control 125 VA REPLACEMENT 3F01-121

Product Description

The WHITE-RODGERS 3F01-120 fixed snap disc fan control is designed for quick on-job replacement. This fan control features a close on rise switch action, a pilot duty rating of 125 VA, and a temperature rating of 350 deg F. It is suitable for HVAC systems and appliance applications.

• Designed for quick on-job replacement
• Mounting holes match standard 3/4 in snap discs
• Close on rise switch action

Product Highlights

This fixed snap disc fan control is easy to install and ideal for HVAC and appliance applications.

Product Information

Standard Information

• Brand: WHITE-RODGERS
• Manufacturer Part Number: 3F01-120
• Country of Origin: US

Technical Specifications

• Type: Fixed
• Series: 3F01
• Switch Action: Close on Rise
• Domestic/Import: Domestic
• Inductive Rating: 5/10 A
• Resistive Rating: 25/21.6 A
• Country of Origin: US
• Manufacturer Name: Emerson Electric
• Pilot Duty Rating: 125 VA
• Temperature Rating: 350 deg F
• Cut-in temperature: 120 deg F
• Cut-out temperature: 110 deg F
• Application: Cooling Controls
• Maximum Temperature: 350 deg F
• Specifications Met: CSA LR77886/LR109556, UL E19279
• Motor: 5A @ 240VAC 10A @ 120VAC
• Features: Fixed Temperature
