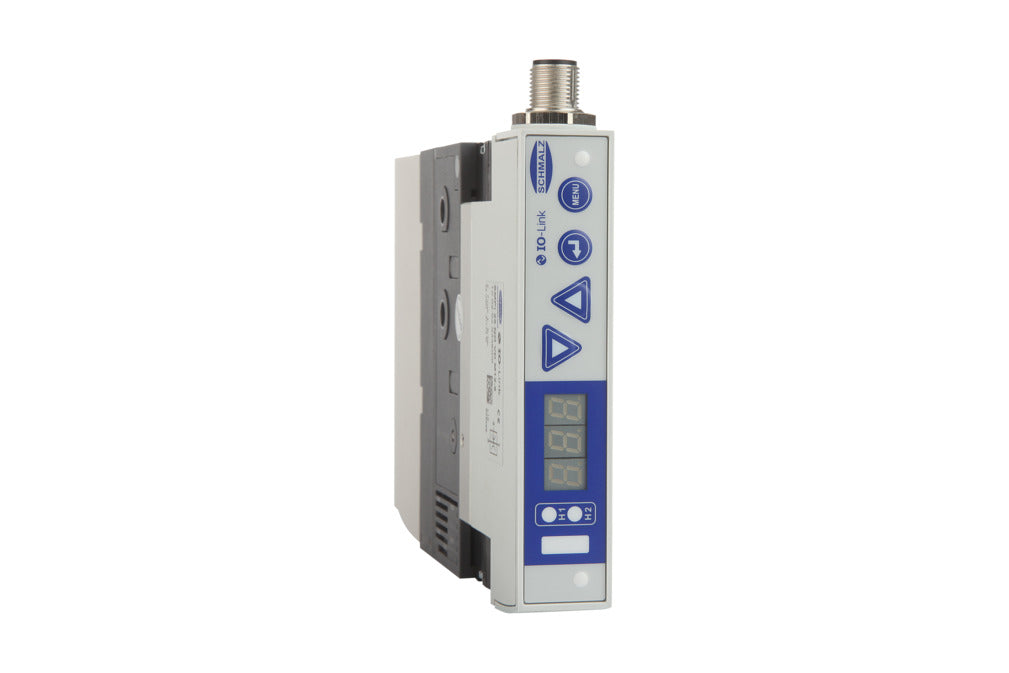

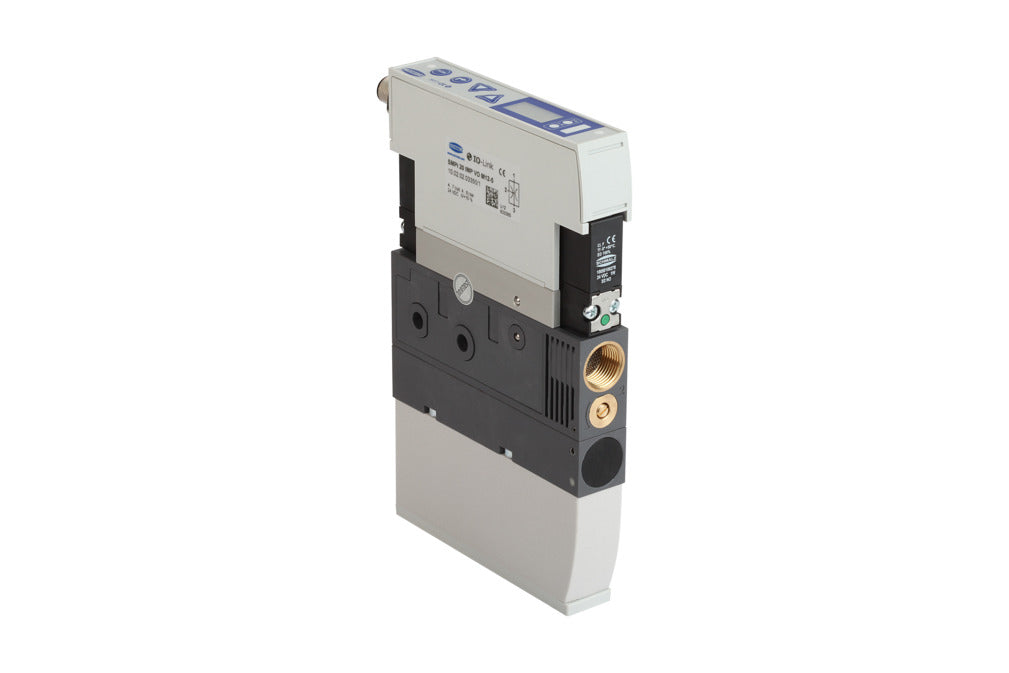

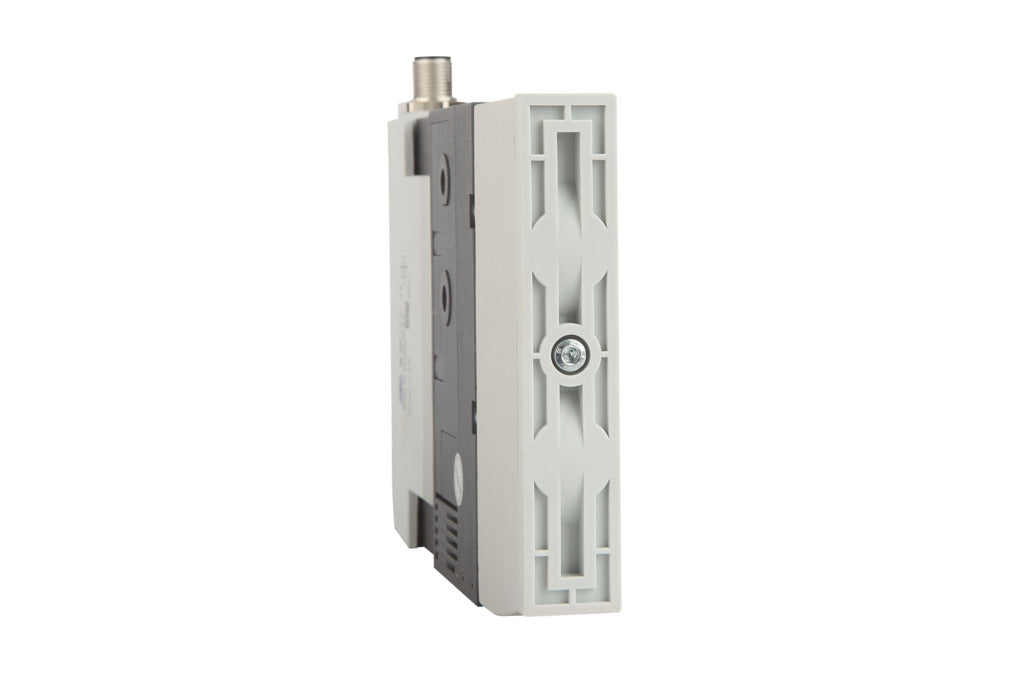

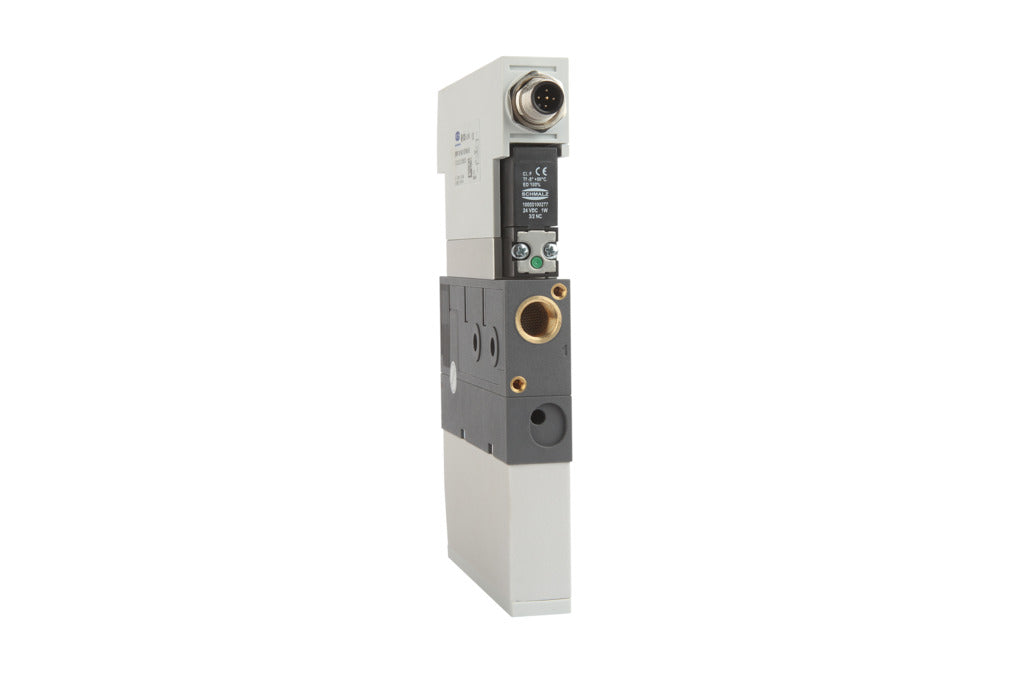

SMP specialty metal products LIFT-SM compact ejector

Product Description

The SMP specialty metal products LIFT-SM is a compact ejector designed for efficient vacuum generation. This device, also known as a MEGA PUMP, includes a power blow-off function and an advanced impulse valve for precise control. The built-in digital vacuum switch ensures reliable operation within specified pressure and temperature ranges.

• Features a power blow-off function for enhanced performance.
• Incorporates a digital vacuum switch for precise control.
• Offers IP65 protection to ensure reliability in various environments.

Product Highlights

This ejector is suitable for a range of applications requiring effective vacuum generation.

Product Information

Standard Information

• Brand: SMP specialty metal products
• MPN: LIFT-SM

Technical Specifications

• Nozzle Diameter: 2 mm
• Suction Rate (max.): 4.77 cfm
• Air Consumption Suction: 6.36 cfm
• Operating Pressure: 58.0 to 101.5 psi
• Maximum Vacuum: -25.10 inHg
• Control Valve: Impulse valve
• Electrical Connection: Male connect M12, 5 pol
• Protection Type IP: IP 65
• Degree of Evacuation: 85 %
• Sound Level Free: 75 dB(A)
• Recommended Internal Hose Diameter Compressed Air: 6 mm
• Recommended Internal Hose Diameter Vacuum: 8 mm
• Operating Temperature: 0 to 50 °C
• Product Family: SMPi
