Smith Equipment 30-100-540 Medium-Duty Flowmeter Regulators Oxygen CGA 540 3,000 psig Inlet

Product Description

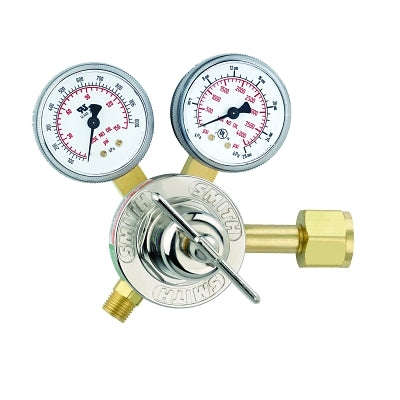

The Smith Equipment 30-100-540 is a medium-duty flowmeter regulator designed for oxygen use with a CGA 540 connection. This regulator operates at a maximum inlet pressure of three thousand psig, making it suitable for various welding applications.

• Durable industrial-grade construction.
• Incorporates flow gauge for accurate gas flow measurement.
• Compatible with shielding gases such as argon and CO2 for MIG and TIG welding.

Product Highlights

The regulator features Smith’s Sure Seat technology, ensuring extended life for both the seat and regulator. It combines flowmeter capability with regulation in a compact design.

Product Information

Standard Information

• Body Diameter: 2 inches
• Gas Type: Oxygen
• Gauge Size: 2 inches
• Inlet Connection: CGA 540

Technical Specifications

• Inlet Pressure (Max): 3,000 psig
• Outlet Connection: 9/16-18 RH B
• Outlet Pressure (Max): 1000 psi
• Overall Length (Nom): 4 3/4 inches
• Packing Type: Clamshell
• Series: Series 30
• Weight: 2.84 pounds
