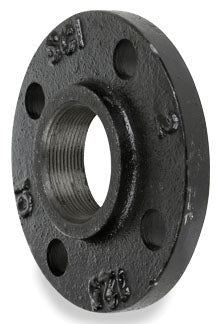

Smith-Cooper International 17TH1080 8 Inch NPT Class 125/150 Cast Black Ductile Iron Companion Flange

Product Description

The Smith-Cooper International 17TH1080 is a companion flange designed for 8-inch nominal pipe size. This fitting is constructed from cast black ductile iron, making it suitable for various industrial applications including fire protection and oil energy systems.

• Nominal pipe size: 8 inches
• Flange outside diameter: 13.5 inches
• Thickness: 1.12 inches

Product Highlights

This flange provides reliable connections in demanding environments. Its threaded end connection enhances installation ease. The product meets several industry standards for quality assurance.

Product Information

Standard Information

• Brand: Smith-Cooper International
• UPC: 092201237309

Technical Specifications

• Material: Ductile Iron
• Material Specification: ASTM A536
• Process: Cast
• Finish: Black
• Pressure Rating: Class 125/150
• Application: Industrial, Fire Protection, Oil and Energy
• Overall Length: 1.75 inches
• Number of Bolt Holes: 8
• Bolt Hole Size: 7/8 inches
• Applicable Standard: AWWA C110/ASME B16.42/B1.20.1, ISO 9001
