Smith-Cooper International 17TH1060 6 NPT Class 125/150 Cast Black Ductile Iron Companion Flange

Product Description

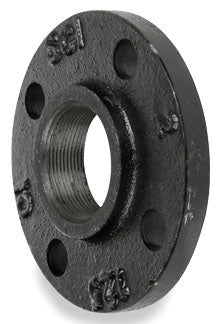

Smith-Cooper International 17TH1060 is a six-inch NPT companion flange made from cast black ductile iron. It is designed for robust applications in industrial settings, fire protection, and oil and energy sectors. This flange features a threaded end connection that allows for compatibility with various piping systems.

• Nominal pipe size: 6 inches
• Flange outside diameter: 11 inches
• Pressure rating: Class 125/150

Product Highlights

The companion flange provides an optimal solution for connecting pipe sections, ensuring a secure and leak-free joint in demanding environments.

Product Information

Standard Information

• Manufacturer: Smith-Cooper International
• Material: Ductile Iron

Technical Specifications

• Nominal Pipe Size: 6 Inch
• Flange Outside Diameter: 11 Inch
• Thickness: 1 Inch
• End Connection: Threaded
• Pressure Rating: Class 125/150
• Material Specification: ASTM A536
• Applicable Standards: AWWA C110/ASME B16.42/B1.20.1, ISO 9001
• Overall Length: 1.56 Inch
• Number of Bolt Holes: 8
• Bolt Hole Size: 7/8 Inch
