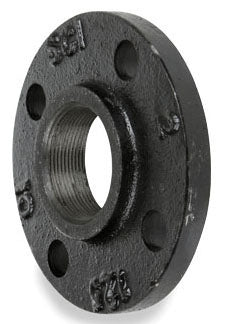

Smith-Cooper International 17TH1024 2-1/2 FPT Class 150 Black Ductile Iron Companion Flange

Product Description

The Smith-Cooper International 17TH1024 is a flange fitting made from ductile iron. It measures two and one-half inches and is designed for use with female threaded connections. This flange is commonly used in industrial, fire protection, and oil and energy applications.

• Flange fitting type: Companion
• Pressure rating: Class 150
• Nominal pipe size: Two and one-half inches

Product Highlights

This fitting is durable and meets various industry standards, making it suitable for demanding applications.

Product Information

Standard Information

• Manufacturer: Smith-Cooper International
• Material: Ductile Iron

Technical Specifications

• Nominal Pipe Size: 2-1/2 Inch
• Flange Outside Diameter: 7 Inch
• Thickness: 0.69 Inch
• End Connection: Female Threaded
• Pressure Rating: Class 150
• Material Specification: ASTM A536
• Applicable Standards: UL, ASME B16.42/B1.20.1, ANSI/AWWA C110/A21.10, ISO 9001
• Number of Bolt Holes: 4
• Bolt Hole Diameter: 3/4 Inch
• Finish: Black
• Application: Industrial, Fire Protection, Oil and Energy
