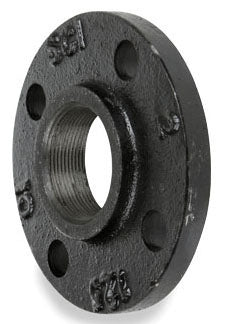

Smith-Cooper International 17TH1020 2 Inch FPT Class 150 Black Ductile Iron Companion Flange

Product Description

The Smith-Cooper International 17TH1020 is a two inch companion flange made from ductile iron. This flange is rated for Class 150 pressure and features a black finish. It is designed for industrial applications, fire protection, oil, and energy systems.

• Type: Companion
• Nominal Pipe Size: 2 Inch
• Flange Outside Diameter: 6 Inch

Product Highlights

This flange is ideal for creating secure connections in various piping systems.

Product Information

Standard Information

• Manufacturer: Smith-Cooper International
• UPC: 092201237231

Technical Specifications

• Material: Ductile Iron
• Material Specification: ASTM A536
• Finish: Black
• Pressure Rating: Class 150
• Thickness: 0.62 Inch
• Flange Outside Diameter: 6 Inch
• Nominal Pipe Size: 2 Inch
• End Connection: Female Threaded
• Application: Industrial, Fire Protection, Oil and Energy
• Applicable Standard: UL, ASME B16.42/B1.20.1, ANSI/AWWA C110/A21.10, ISO 9001
• Bolt Hole Diameter: 3/4 Inch
• Number of Bolt Holes: 4
